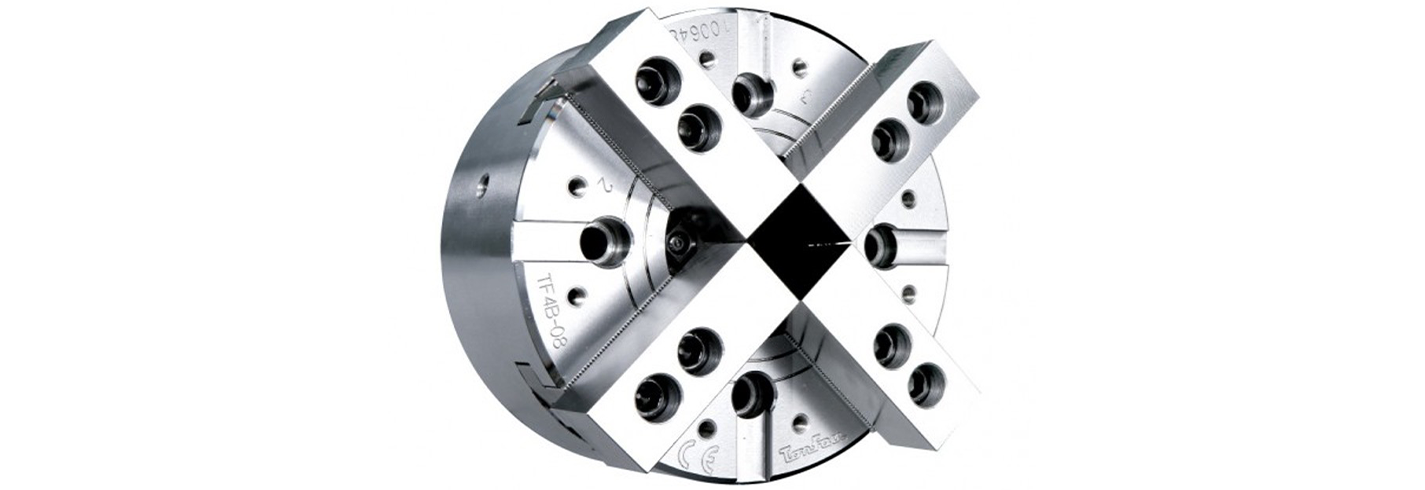

What Is a CNC Hydraulic Chuck?

A CNC hydraulic chuck is a type of workholding system used in CNC machine tools. Its primary function is to securely clamp and hold the workpiece during machining operations. Hydraulic chucks are considered one of the most important general clamping systems used in CNC machining because they provide strong, stable, and highly reliable workpiece holding performance. Standard hydraulic chucks are capable of reaching rotational speeds of up to 40,000 rpm, making them suitable for high-speed and precision machining applications.

Structure and Operating Principle of Hydraulic Chucks

Hydraulic chucks generally consist of two main systems:

Pneumatic clamping systems
Hydraulic clamping systems

These systems allow the chuck to automatically grip and secure the workpiece without requiring manual adjustments.

Hydraulic chucks also feature practical and user-friendly structures that improve operational efficiency during production processes.

A stopper-tip screw mechanism enables easier workpiece positioning, while reduction sleeves functioning similarly to collets help the chuck grip the workpiece more securely and precisely.

Advantages of Using CNC Hydraulic Chucks

Superior Clamping Performance

Hydraulic chucks provide unmatched performance in workpiece clamping operations.

Their high clamping force ensures that parts remain stable during machining, which directly contributes to improved machining quality and precision.

Faster and More Reliable Setup

Thanks to their secure and automatic gripping systems, hydraulic chucks allow operators to load parts faster and more safely onto the machine.

This results in:

Reduced setup time
Faster production cycles
Lower operational costs

Improved Tool Life

The stability provided by hydraulic chucks reduces vibration during machining operations, which helps extend cutting tool life.

Longer tool life leads to:

Lower tooling costs
More consistent machining quality
Reduced downtime for tool replacement

Higher Material Removal Rates

Because hydraulic chucks hold parts securely and rigidly, machines can operate with more aggressive cutting parameters and higher material removal rates.

This allows manufacturers to achieve:

Faster machining operations
Increased productivity
Improved production efficiency

Shorter Machining Times

The combination of stable clamping, reduced vibration, and improved cutting conditions shortens overall part processing times.

This gives manufacturers a significant competitive advantage in high-volume production environments.

Why Hydraulic Chucks Are Important in CNC Machines

Hydraulic chucks are among the most critical main components of CNC machines because they offer:

High load-carrying capacity
Strong gripping force
Stable machining conditions
High rotational precision
Improved operational safety

These characteristics make hydraulic chuck systems indispensable in modern precision manufacturing applications.

CNC Hydraulic Chuck Solutions with GNC Makina

At GNC Makina, we provide advanced CNC hydraulic chuck solutions designed to improve machining precision, productivity, and operational reliability.

For more detailed information about hydraulic chuck systems and CNC workholding solutions, you can contact our Solution Center and receive support from our expert technical teams.
