What Are EDM Machines? CNC EDM Technology

The Development of EDM Technology

Although the EDM process had been discovered earlier, it was not until the late 1960s—when electronic control systems became more advanced—that EDM evolved into a reliable and highly precise machining method for industrial applications.

Following these technological developments, EDM machines began to be manufactured and widely adopted around the world.

What Is an EDM Machine?

An EDM machine is a specialized machining system primarily used in mold manufacturing and precision part production.

The machine works by generating controlled spark discharges between electrically charged electrodes and the workpiece surface, enabling highly precise material removal.

Unlike traditional cutting methods, EDM technology allows manufacturers to shape and machine materials regardless of their hardness or machinability.

For this reason, EDM machines are especially preferred for:

• Hard-to-machine materials
• Complex geometries
• Intricate mold structures
• Precision micro-components

There are two primary types of EDM machines:

• Wire EDM machines
• Sinker EDM (die-sinking EDM) machines

High-Precision EDM Technology with ONA

Modern EDM technologies—especially those developed by ONA—have pushed machining precision to extraordinary levels.

Today, EDM systems can achieve:

• Surface roughness values as fine as 0.08 µRa (super-finish level)
• Dimensional tolerances of ±2 microns

These capabilities have expanded EDM applications across industries such as:

• Microchip mold manufacturing
• Optical industry
• Micromechanics
• Plastic mold manufacturing
• Metal mold production

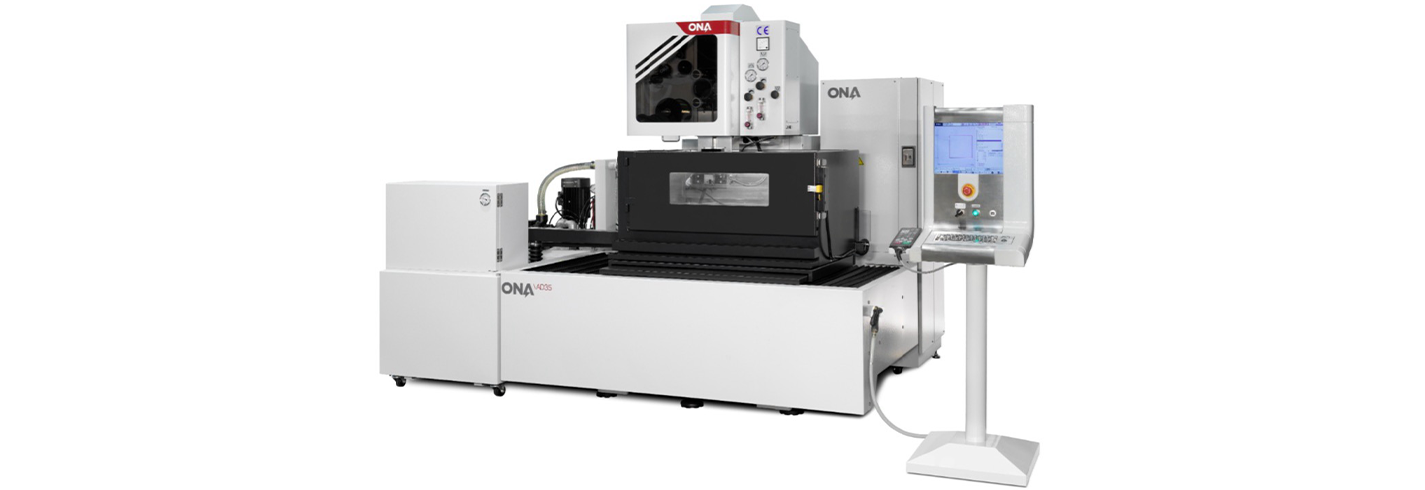

Wire EDM Machines

Wire EDM is a machining method that cuts electrically conductive materials through electrical erosion using a continuously energized wire electrode.

This method belongs to the category of non-conventional manufacturing technologies and enables micron-level machining precision for hard materials and highly complex geometries.

How Wire EDM Works

In wire EDM systems:

• A thin wire acts as the electrode
• The wire and workpiece are connected to different electrical polarities
• When the wire approaches the workpiece, electrical discharges generate extremely high temperatures
• Localized melting removes material from the workpiece surface

The material removal rate depends on:

• The energy of each spark
• The timing interval between sparks

Wire EDM machines are especially valuable for precision cutting operations where traditional machining methods become insufficient.

Sinker EDM Machines

Sinker EDM (die-sinking EDM) is used for machining geometries that cannot be fully processed with conventional methods such as:

• Turning
• Milling
• CNC vertical machining

This technology is particularly suitable for:

• Intricate geometries
• Very small channels
• Sharp internal corners
• Deep cavity structures

For this reason, sinker EDM is most commonly used in mold manufacturing industries.

CNC EDM Machines

Modern CNC EDM machines offer far more advanced capabilities compared to conventional EDM systems.

Today’s advanced CNC EDM machines can include:

• Automatic electrode magazines
• CNC-controlled electrode changing systems
• Automated machining sequences
• Integrated precision control technologies

Similar to CNC machining centers, these machines can automatically select and use electrodes from the magazine according to programmed machining sequences.

This significantly increases:

• Production efficiency
• Machining precision
• Automation capability
• Repeatability

Advantages of EDM Machines

EDM technologies offer several major advantages over traditional machining methods.

Burr-Free Machining

One of the biggest advantages of EDM is the ability to machine parts without producing burrs, resulting in cleaner and more precise surfaces.

Superior Surface Finish

EDM processes provide lower surface roughness values compared to many conventional machining methods.

Excellent Surface Uniformity

EDM machining creates highly uniform surface textures that provide excellent adhesion characteristics for lubricants and functional coatings.

Machining Extremely Hard Materials

EDM can process conductive materials regardless of hardness, making it ideal for advanced engineering materials and hardened steels.

Precision for Complex Geometries

EDM is capable of machining shapes and internal geometries that would be impossible or extremely difficult to achieve using traditional cutting tools.

The Role of EDM Technology in Modern Manufacturing

Today, EDM technology has become indispensable in industries requiring ultra-high precision, complex geometry machining, and superior surface quality.

Especially in sectors such as:

• Aerospace
• Defense
• Medical manufacturing
• Mold manufacturing
• Electronics
• Optical technologies

EDM systems continue pushing the limits of precision manufacturing.

With advanced solutions such as ONA EDM technologies, GNC Makina continues bringing high-performance EDM solutions to Turkish industry and supporting manufacturers in achieving next-generation production capabilities.
