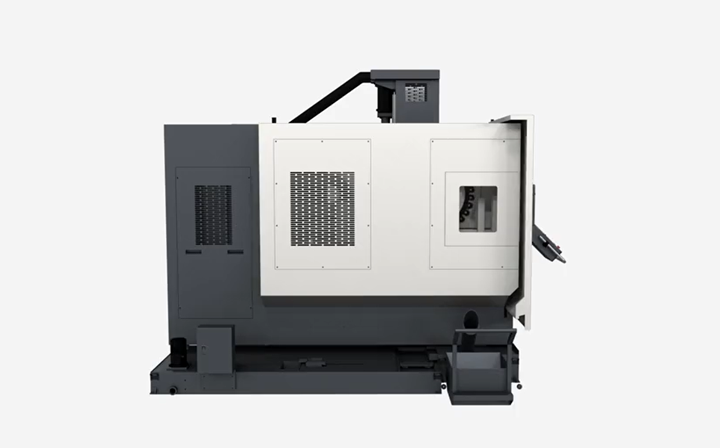

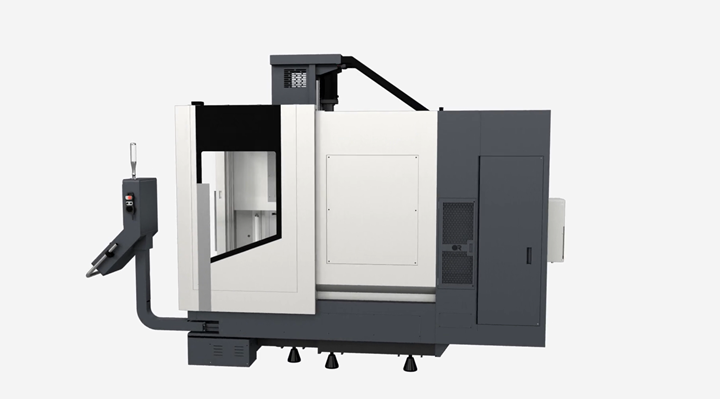

Victor Taichung Vcenter-AX380

Get a Quote

Catalog

TECHNICAL SPECIFICATIONS

Items	Unit	AX380 (Non CTS)	AX380 (CTS)
Travel
X axis	mm	700	700
Y axis	mm	500	500
Z axis	mm	540	540
A axis	deg	-120 ~ 30	-120 ~ 30
C axis	deg	0 ~ 360	0 ~ 360
Table
Work area	mm	Ø380	Ø380
T-slot	mm	12H7	12H7
Max load	kg	200	200
Spindle
Quill taper		BBT-40	BBT-40
Motor power	kW	11 / 15 / 18.5	7.5 / 11 / 15
Max speed	rpm	12000	12000
Tools
Capacity	T	30	30
Max weight	kg	7	7
Accuracy (ISO 230-2)
Accuracy	mm	0.010	0.010
Repeatability	mm	0.007 (±0.0035)	0.007 (±0.0035)
Machine
Weight	kg	6000	6000

Victor Taichung Vcenter-AX380

The Victor Taichung AX380 is a high-performance 5-axis CNC machining center designed to meet modern manufacturing demands. With its large machining capacity and flexible axis configuration, it enables precise and efficient machining of complex geometries.

Featuring a user-friendly control system, strong structural stability, and high precision, the AX380 provides a powerful solution for automotive, aerospace, mold & die, and advanced engineering component manufacturing. By reducing the number of setups and machining times, this machine improves efficiency throughout production processes.

Key Features

5-axis machining capability allows complex-shaped parts to be machined in a single setup
Large machining capacity and rigid machine structure ensure stable processing of large workpieces
High-precision axis control optimizes surface quality and dimensional repeatability
Higher productivity with fewer setups reduces overall production time
User-friendly CNC control enhances operator efficiency
Victor Taichung engineering delivers long-lasting, durable performance with low maintenance requirements

TECHNICAL SPECIFICATIONS

Items	Unit	AX380 (Non CTS)	AX380 (CTS)
Travel
X axis	mm	700	700
Y axis	mm	500	500
Z axis	mm	540	540
A axis	deg	-120 ~ 30	-120 ~ 30
C axis	deg	0 ~ 360	0 ~ 360
Table
Work area	mm	Ø380	Ø380
T-slot	mm	12H7	12H7
Max load	kg	200	200
Spindle
Quill taper		BBT-40	BBT-40
Motor power	kW	11 / 15 / 18.5	7.5 / 11 / 15
Max speed	rpm	12000	12000
Tools
Capacity	T	30	30
Max weight	kg	7	7
Accuracy (ISO 230-2)
Accuracy	mm	0.010	0.010
Repeatability	mm	0.007 (±0.0035)	0.007 (±0.0035)
Machine
Weight	kg	6000	6000
