TECHNICAL SPECIFICATIONS

Model Unit SE-1612 SE-2112 SE-2612 SE-1618 SE-2118 SE-2618 SE-3118
X axis travel mm 1600 2100 2600 1600 2100 2600 3100
Y axis travel mm   1200       1800
Z axis travel mm     800 / 1,000 (Opt.)     800 / 1,000 (Opt.)
Table size mm 1,800 × 1,100 2,300 × 1,100 2,800 × 1,100 1,800 × 1,600 2,300 × 1,600 2,800 × 1,600 3,300 × 1,600
Max. table load kg 8000 10000 12000 8000 10000 12000 14000
Spindle power (cont. / 30 min.) kW     15 / 18.5     15 / 18.5
Spindle speed rpm     15000     15000
Cutting feed rate mm/min     1-24,000     1-24,000
Rapid traverse (X/Y/Z) m/min     24 / 30 (Opt.)     24 / 30 (Opt.)
Tool magazine capacity pcs     24 (20/32/40 Opt.)     24 (20/32/40 Opt.)

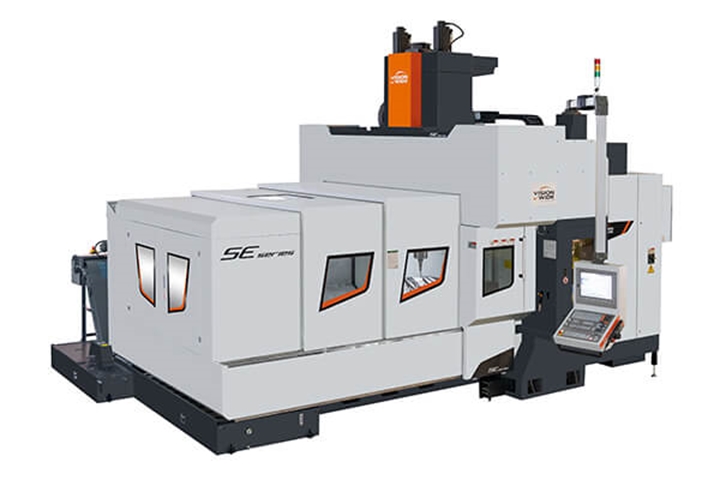

Vision Wide SE Series

The Vision Wide SE Series is a 3-axis portal-type high-speed CNC machining center family developed specifically for mold machining, aluminum alloy processing, and high-volume material removal applications.

Thanks to its optimized mechanical design and enhanced structural performance, the SE Series delivers up to 50% higher productivity compared to previous-generation machines. With its high-speed spindle, precise contour accuracy, and superior surface finish quality, it provides an excellent solution for both mass production and precision mold applications.

Key Features

  • 3-axis portal-type structure for high rigidity and stable cutting performance
  • 24,000 rpm spindle speed for high-speed machining and fine surface finishing
  • 20 m/min cutting feedrate reducing cycle times and increasing productivity
  • Up to 50% productivity improvement through optimized mechanical design
  • 0.007 mm positioning accuracy for high-precision machining applications
  • 0.003 mm repeatability ensuring stable and reliable production
  • 5,000 cc/min aluminum material removal capacity for high-volume cutting performance
  • High contour accuracy for complex surface machining
  • Superior surface finish quality ideal for mold and aluminum applications

TECHNICAL SPECIFICATIONS

Model Unit SE-1612 SE-2112 SE-2612 SE-1618 SE-2118 SE-2618 SE-3118
X axis travel mm 1600 2100 2600 1600 2100 2600 3100
Y axis travel mm   1200       1800
Z axis travel mm     800 / 1,000 (Opt.)     800 / 1,000 (Opt.)
Table size mm 1,800 × 1,100 2,300 × 1,100 2,800 × 1,100 1,800 × 1,600 2,300 × 1,600 2,800 × 1,600 3,300 × 1,600
Max. table load kg 8000 10000 12000 8000 10000 12000 14000
Spindle power (cont. / 30 min.) kW     15 / 18.5     15 / 18.5
Spindle speed rpm     15000     15000
Cutting feed rate mm/min     1-24,000     1-24,000
Rapid traverse (X/Y/Z) m/min     24 / 30 (Opt.)     24 / 30 (Opt.)
Tool magazine capacity pcs     24 (20/32/40 Opt.)     24 (20/32/40 Opt.)
