TECHNICAL SPECIFICATIONS

Model Unit FA-2123 FA-2623 FA-3123 FA-3027 FA-4027 FA-3033 FA-4033 FA-5033 FA-6033 FA-8033
X axis mm 2,100 2,600 3,100 3,100 4,100 3,100 4,100 5,100 6,100 8,100
Y axis mm - 2,300 - - 2,700 - - 3,300 - -
Z axis mm 800 / 1,000 (opt.) - - 1,000 - - - 1,000 - -
Port width mm - 1,700 - - 2,200 - - 2,700 - -
Table dimension mm 2,300 × 1,600 2,800 × 1,600 3,300 × 1,600 3,000 × 1,800 4,000 × 1,800 3,000 × 2,450 4,000 × 2,450 5,000 × 2,450 6,000 × 2,450 8,000 × 2,450
Max. table load kg 10,000 12,000 14,000 10,000 12,000 13,000 16,000 20,000 22,000 24,000
Spindle speed rpm 24,000 - - 12,000 - - - 12,000 - -
Spindle power (cont. / 30 min.) kW 25 / 30 - - 34 / 43 - - - 34 / 43 - -
Spindle torque (cont. / 30 min.) Nm 30 / 36 - - 162 / 205 - - - 162 / 205 - -
Spindle taper - HSK-A63 - - HSK-A100 - - - HSK-A100 - -
Cutting feedrate mm/min 1~24,000 - - 1~10,000 - - - 1~10,000 - -
Rapid traverse m/min 24 / 24 / 20 - - 24 / 18 / 15 18 / 18 / 15 24 / 15 / 15 18 / 15 / 15 12.5 / 15 / 15 10 / 15 / 15 8 / 15 / 15
Positioning accuracy (Refer to JIS B6333) mm ±0.004 / Full travel - - ±0.005 / 300,
±0.008 / Full travel		 - - - ±0.005 / 300,
±0.010 / Full travel		 - -
Repeatability (Refer to JIS B6333) mm ±0.001 - - - - - - ±0.002 - -
ATC capacity Floor-standing type vertical tool change pcs - - - - - 24 / 32 (opt.) / 40 (opt.) - - - -

Vision Wide FA Series

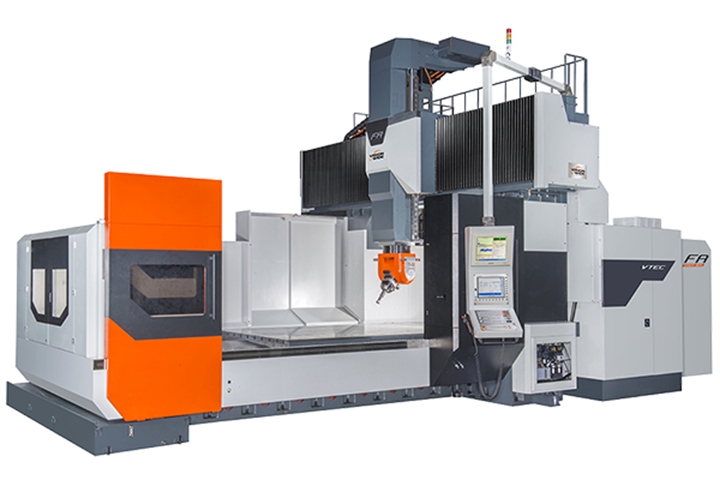

The Vision Wide FA Series is the brand’s first bridge-type 5-axis double-column CNC machining center series, introduced in 2014. It was specifically developed for mold machining, high-precision contour finishing, milling, drilling, and tapping operations.

Designed for simultaneous 5-axis machining applications, the FA Series delivers exceptional accuracy, enabling complex geometries to be machined in a single setup with high precision.

Key Features

  • Simultaneous 5-axis machining for molds and complex angular workpieces
  • TCPM dynamic synchronization accuracy: 0.04 mm for highly accurate 5-axis motion control
  • High-precision 2-axis head system for stable multi-axis machining performance
  • Automatic rotary axis compensation optimizing rotational accuracy continuously
  • Automatic tool accuracy compensation minimizing tool-related deviations
  • Excellent thermal stability with thermal expansion below 0.02 mm
  • Bridge-type double-column structure providing large machining capacity and high rigidity

TECHNICAL SPECIFICATIONS

Model Unit FA-2123 FA-2623 FA-3123 FA-3027 FA-4027 FA-3033 FA-4033 FA-5033 FA-6033 FA-8033
X axis mm 2,100 2,600 3,100 3,100 4,100 3,100 4,100 5,100 6,100 8,100
Y axis mm - 2,300 - - 2,700 - - 3,300 - -
Z axis mm 800 / 1,000 (opt.) - - 1,000 - - - 1,000 - -
Port width mm - 1,700 - - 2,200 - - 2,700 - -
Table dimension mm 2,300 × 1,600 2,800 × 1,600 3,300 × 1,600 3,000 × 1,800 4,000 × 1,800 3,000 × 2,450 4,000 × 2,450 5,000 × 2,450 6,000 × 2,450 8,000 × 2,450
Max. table load kg 10,000 12,000 14,000 10,000 12,000 13,000 16,000 20,000 22,000 24,000
Spindle speed rpm 24,000 - - 12,000 - - - 12,000 - -
Spindle power (cont. / 30 min.) kW 25 / 30 - - 34 / 43 - - - 34 / 43 - -
Spindle torque (cont. / 30 min.) Nm 30 / 36 - - 162 / 205 - - - 162 / 205 - -
Spindle taper - HSK-A63 - - HSK-A100 - - - HSK-A100 - -
Cutting feedrate mm/min 1~24,000 - - 1~10,000 - - - 1~10,000 - -
Rapid traverse m/min 24 / 24 / 20 - - 24 / 18 / 15 18 / 18 / 15 24 / 15 / 15 18 / 15 / 15 12.5 / 15 / 15 10 / 15 / 15 8 / 15 / 15
Positioning accuracy (Refer to JIS B6333) mm ±0.004 / Full travel - - ±0.005 / 300,
±0.008 / Full travel		 - - - ±0.005 / 300,
±0.010 / Full travel		 - -
Repeatability (Refer to JIS B6333) mm ±0.001 - - - - - - ±0.002 - -
ATC capacity Floor-standing type vertical tool change pcs - - - - - 24 / 32 (opt.) / 40 (opt.) - - - -
