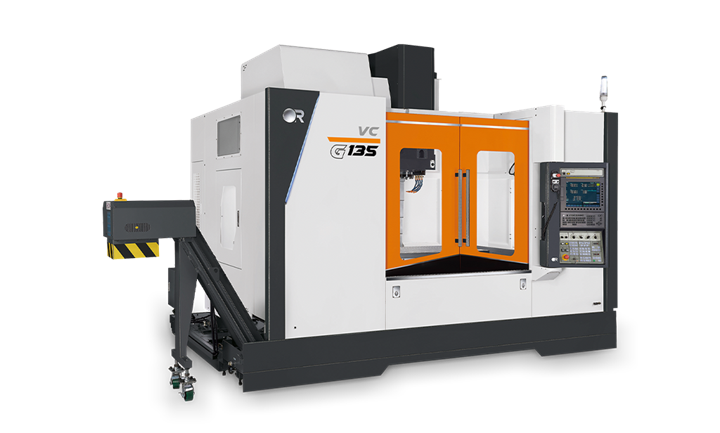

Victor Vcenter G135

TECHNICAL SPECIFICATIONS

Items	Unit	G135 (Non CTS)	G135 (CTS)
Travel
X axis	mm	1350	1350
Y axis	mm	700	700
Z axis	mm	700	700
Table
Work area	mm	1400 × 700	1400 × 700
T-slot	mm	7 × 18 × 100	7 × 18 × 100
Max load	kg	2200	2200
Spindle
Quill taper		BBT-50	BBT-50
Motor power	kW	15 / 18	15 / 18
Max speed	rpm	6000	6000
Tools
Capacity	T	24	24
Max weight	kg	15	15
Accuracy (ISO 230-2)
Accuracy	mm	0.01	0.01
Repeatability	mm	0.007 (±0.0035)	0.007 (±0.0035)
Machine
Weight	kg	12100	12100

Victor Vcenter G135

The Victor Vcenter G135 is a high-stability CNC machining center developed for heavy cutting operations and continuous production environments. Thanks to its box-way guideway structure, it minimizes vibration during demanding machining applications while maintaining part quality and dimensional consistency. The G135 is a powerful solution for manufacturers seeking reliable, long-term production of large and heavy workpieces.

Key Features

Superior Stability with Box-Way Structure
Delivers high rigidity and reliable machining performance in heavy cutting applications.
Ideal for Large and Heavy Workpieces
Provides balanced and controlled operation even under demanding production conditions.
Designed for Continuous Production
Maintains part quality and machining consistency during long operating cycles.
Robust and Durable Construction
Long-lasting machine design suitable for intensive industrial environments.
Strong Price / Performance Balance
Optimizes investment costs while delivering powerful heavy-machining capability.

TECHNICAL SPECIFICATIONS

Items	Unit	G135 (Non CTS)	G135 (CTS)
Travel
X axis	mm	1350	1350
Y axis	mm	700	700
Z axis	mm	700	700
Table
Work area	mm	1400 × 700	1400 × 700
T-slot	mm	7 × 18 × 100	7 × 18 × 100
Max load	kg	2200	2200
Spindle
Quill taper		BBT-50	BBT-50
Motor power	kW	15 / 18	15 / 18
Max speed	rpm	6000	6000
Tools
Capacity	T	24	24
Max weight	kg	15	15
Accuracy (ISO 230-2)
Accuracy	mm	0.01	0.01
Repeatability	mm	0.007 (±0.0035)	0.007 (±0.0035)
Machine
Weight	kg	12100	12100
