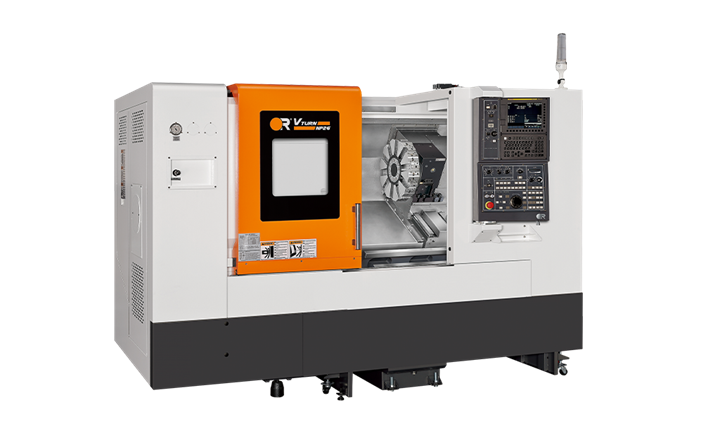

Victor Taichung Vturn NP26

TECHNICAL SPECIFICATIONS

Items Unit NP26 (2 Axis) NP26 (C Axis)
Capacity
Swing over carriage dia mm 540 540
Standard turning dia mm 271 266
Maximum turning dia mm 450 440
Max. turning length mm 640 640
Main Spindle
Max speed rpm 3500 3500
Nose (chuck) inch A2-8 (10") A2-8 (10")
Bar capacity mm 75 75
Turret
NO. of tools (live) T 10 12
Shank size mm □25 □25
Tailstock
Quill taper   M.T. #5 M.T. #5
Machine
Weight kg 5200 5300

Victor Taichung Vturn NP26

The Victor Taichung NP26, as the expanded-capacity model of the NP series, delivers a reliable and stable production experience in horizontal turning applications. Thanks to its balanced machine structure and stable machining characteristics, it enables consistent results across a wide range of workpiece types.

The NP26 is a CNC turning solution developed for manufacturers seeking flexibility, continuity, and predictable performance in their production processes. Its durable construction is designed for long operating hours and continuous production environments.

Key Features

  • Expanded-capacity model of the NP series, suitable for machining larger workpieces
  • Stable and balanced machining characteristics support superior surface quality and repeatability
  • Reliable machine structure designed for long-term and uninterrupted production
  • Horizontal lathe design offers advantages in operator ergonomics and chip evacuation
  • User-friendly CNC control enables quick adaptation and easy operation
  • Victor Taichung engineering focuses on long service life and low maintenance requirements

TECHNICAL SPECIFICATIONS

Items Unit NP26 (2 Axis) NP26 (C Axis)
Capacity
Swing over carriage dia mm 540 540
Standard turning dia mm 271 266
Maximum turning dia mm 450 440
Max. turning length mm 640 640
Main Spindle
Max speed rpm 3500 3500
Nose (chuck) inch A2-8 (10") A2-8 (10")
Bar capacity mm 75 75
Turret
NO. of tools (live) T 10 12
Shank size mm □25 □25
Tailstock
Quill taper   M.T. #5 M.T. #5
Machine
Weight kg 5200 5300
