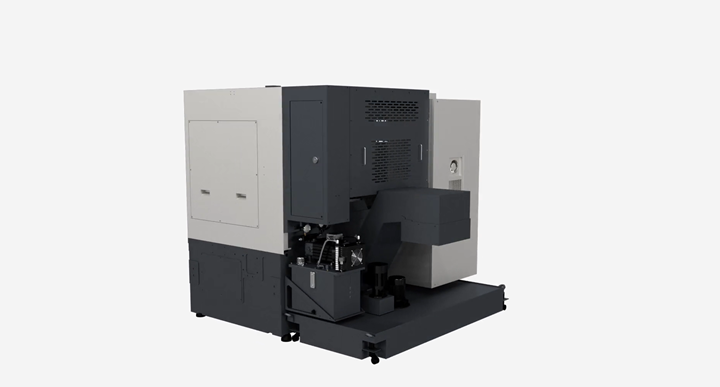

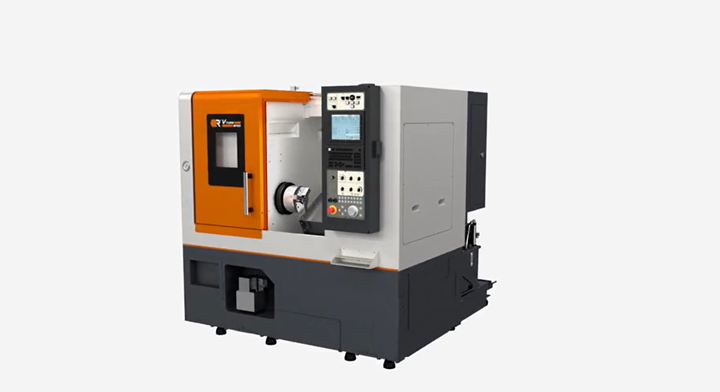

Victor Taichung Vturn NP20

TECHNICAL SPECIFICATIONS

Items Unit NP20 (2 Axis) NP20 (C Axis)
Capacity
Swing over carriage dia mm Ø365 Ø365
Standard turning dia mm Ø206 Ø234
Maximum turning dia mm Ø320 Ø260
Max. turning length mm 520 520
Main Spindle
Max speed rpm 4200 4200
Nose (chuck) inch A2-6 (8") A2-6 (8")
Bar capacity mm Ø52 Ø52
Turret
NO. of tools (live) T 12 12
Shank size mm □25 □25
Tailstock
Quill taper   M.T. #4 M.T. #4
Machine
Weight kg 4000 4370

Victor Taichung Vturn NP20

The Victor Taichung NP20 is a horizontal CNC lathe developed for manufacturers seeking reliability and continuity in daily production operations. Thanks to its balanced machine structure and stable machining characteristics, it delivers consistent results across a wide variety of workpiece types.

The NP20 provides an efficient, controlled, and predictable production process for both mass production and precision turning applications. With its structure designed for long operating hours, it offers a sustainable solution for modern manufacturing environments.

Key Features

  • General-purpose horizontal lathe design adapts to a wide range of manufacturing requirements
  • Stable and balanced machining performance enhances surface quality and machining repeatability
  • Strong and reliable machine structure supports stability during long production cycles
  • User-friendly CNC control enables fast learning and easy operation
  • Production-oriented structure improves time and labor efficiency in mass production environments
  • Victor Taichung engineering delivers a long-lasting solution with low maintenance requirements

TECHNICAL SPECIFICATIONS

Items Unit NP20 (2 Axis) NP20 (C Axis)
Capacity
Swing over carriage dia mm Ø365 Ø365
Standard turning dia mm Ø206 Ø234
Maximum turning dia mm Ø320 Ø260
Max. turning length mm 520 520
Main Spindle
Max speed rpm 4200 4200
Nose (chuck) inch A2-6 (8") A2-6 (8")
Bar capacity mm Ø52 Ø52
Turret
NO. of tools (live) T 12 12
Shank size mm □25 □25
Tailstock
Quill taper   M.T. #4 M.T. #4
Machine
Weight kg 4000 4370
