Victor Taichung Vturn NP16

TECHNICAL SPECIFICATIONS

Items Unit NP16 (2 Axis) NP16 (C Axis)
Capacity
Swing over carriage dia mm Ø325 Ø325
Standard turning dia mm Ø185 Ø200
Maximum turning dia mm Ø260 Ø200
Max. turning length mm 270 270
Main Spindle
Max speed rpm 6000 6000
Nose (chuck) inch A2-5 (6") A2-5 (6")
Bar capacity mm Ø42 Ø42
Turret
NO. of tools (live) T 12 12
Shank size mm □20 □20
Machine
Weight kg 3700 4070

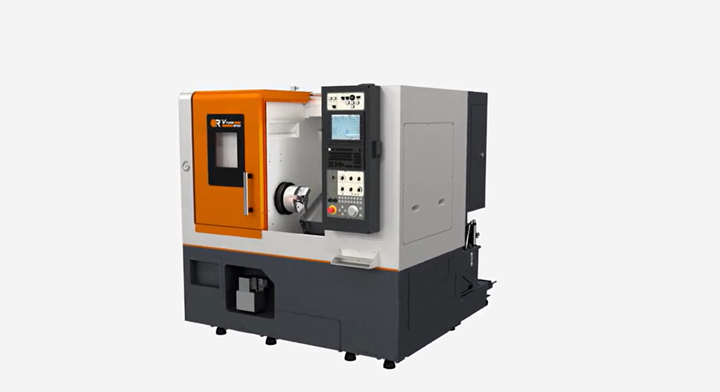

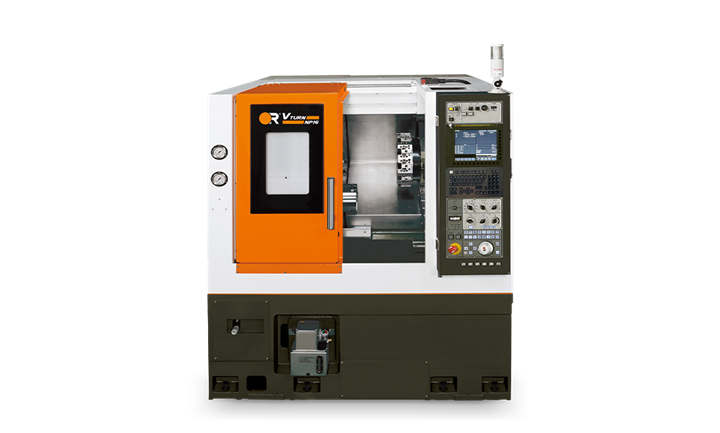

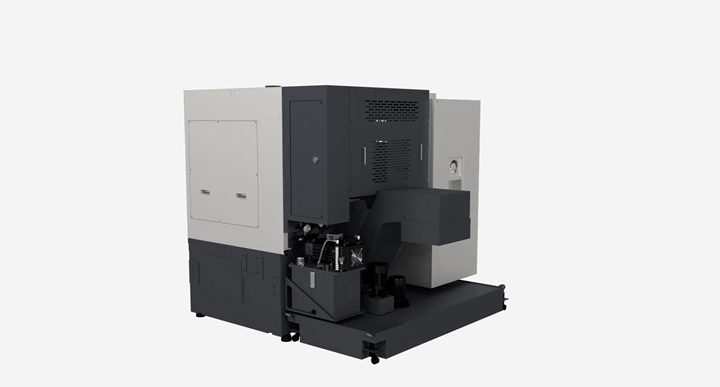

Victor Taichung Vturn NP16

The Victor Taichung NP16 is a CNC lathe designed to deliver high efficiency and stable performance in horizontal turning applications with its durable construction and precision machining capability. Thanks to its wide machining capacity and robust structure, it supports production across various industries without compromising surface quality.

With its rigid machine body and balanced axis control, the NP16 provides an ideal solution for both mass production and precision part machining applications.

Key Features

  • Strong and Rigid Construction – Designed for heavy cutting operations and continuous production environments
  • Horizontal Lathe Structure – Compatible with a wide range of workpiece types
  • Stable Spindle Performance – Ensures high surface quality and repeatable machining results
  • User-Friendly CNC Control – Offers easy programming and fast setup processes
  • Flexible Machining Capacity – Adapts to different workpiece sizes and production requirements

TECHNICAL SPECIFICATIONS

Items Unit NP16 (2 Axis) NP16 (C Axis)
Capacity
Swing over carriage dia mm Ø325 Ø325
Standard turning dia mm Ø185 Ø200
Maximum turning dia mm Ø260 Ø200
Max. turning length mm 270 270
Main Spindle
Max speed rpm 6000 6000
Nose (chuck) inch A2-5 (6") A2-5 (6")
Bar capacity mm Ø42 Ø42
Turret
NO. of tools (live) T 12 12
Shank size mm □20 □20
Machine
Weight kg 3700 4070
