Victor Taichung Vcenter-P136

TECHNICAL SPECIFICATIONS

Items Unit P136 (Non CTS) P136 (CTS)
Travel
X axis mm 1360 1360
Y axis mm 700 700
Z axis mm 700 700
Table
Work area mm 1400 × 700 1400 × 700
T-slot mm 7 × 18 × 100 7 × 18 × 100
Max load kg 1000 1000
Spindle
Quill taper   BBT-40 BBT-40
Motor power kW 11 / 15 / 18.5 7.5 / 11 / 15
Max speed rpm 12000 12000
Tools
Capacity T 30 30
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 8880 8880

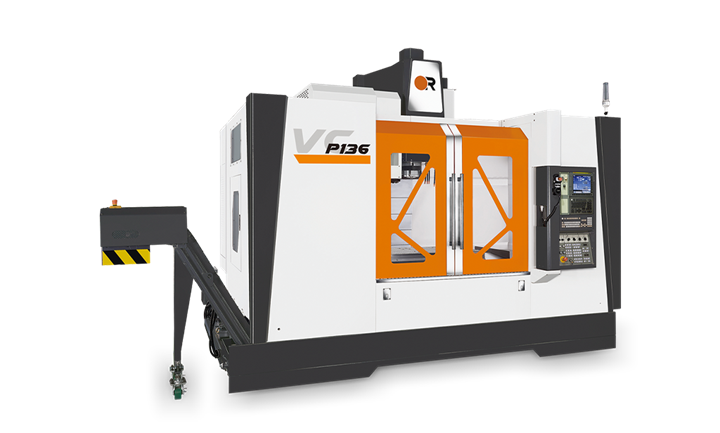

Victor Taichung Vcenter-P136

The Victor Vcenter P136 is a CNC machining center developed to deliver high stability, reliability, and continuous performance for daily manufacturing needs. Thanks to its rigid machine structure and balanced design, it ensures consistent machining quality even during extended production cycles. The P136 is an ideal solution for manufacturers seeking efficient, trouble-free, and predictable production processes in general manufacturing, mass production, and environments involving various workpiece types.

Key Features

  • Structure Designed for Production Continuity
    Balanced and robust construction developed for intensive and long-term operations.
  • Stable Machining Performance
    Vibration-free and reliable machining characteristics that preserve part quality.
  • User-Friendly Operation
    Practical operation and easy control designed to support operator habits and improve efficiency.
  • Wide Range of Applications
    Effective solution for general manufacturing, mass production, and precision part machining applications.
  • Strong Price / Performance Balance
    Optimizes investment costs while maintaining high production efficiency.

TECHNICAL SPECIFICATIONS

Items Unit P136 (Non CTS) P136 (CTS)
Travel
X axis mm 1360 1360
Y axis mm 700 700
Z axis mm 700 700
Table
Work area mm 1400 × 700 1400 × 700
T-slot mm 7 × 18 × 100 7 × 18 × 100
Max load kg 1000 1000
Spindle
Quill taper   BBT-40 BBT-40
Motor power kW 11 / 15 / 18.5 7.5 / 11 / 15
Max speed rpm 12000 12000
Tools
Capacity T 30 30
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 8880 8880
