Victor Taichung Vcenter-H400

TECHNICAL SPECIFICATIONS

Items Unit H400 (Non CTS) H400 (CTS)
Travel
X axis mm 500 500
Y axis mm 600 600
Z axis mm 500 500
B axis deg 0 ~ 360 0 ~ 360
Table
Work area mm 400 × 400 400 × 400
Surface configuration mm M12 × P1.75 M12 × P1.75
Max load kg 400 400
Pallet exchange time sec 7 (P-P), 11.4 (C-C) 7 (P-P), 11.4 (C-C)
Spindle
Quill taper   BBT-40 BBT-40
Motor power kW 44 / 6 / 9 44 / 6 / 9
Max speed rpm 15000 15000
Tools
Capacity T 60 60
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 11300 11300

Victor Taichung Vcenter-H400

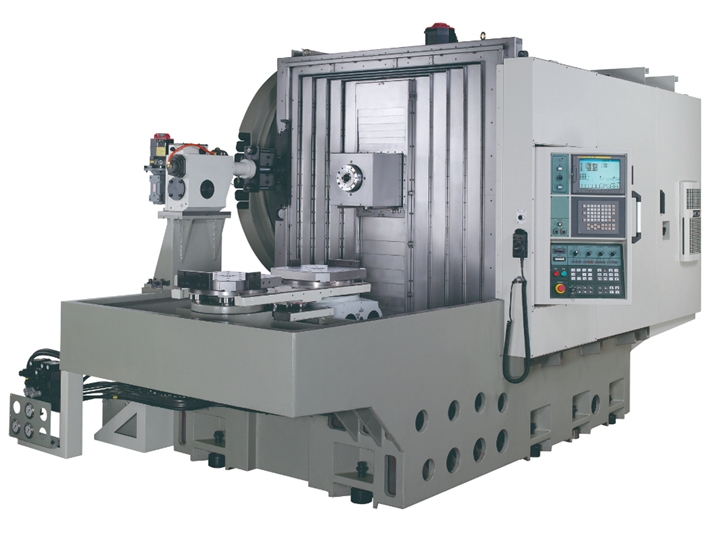

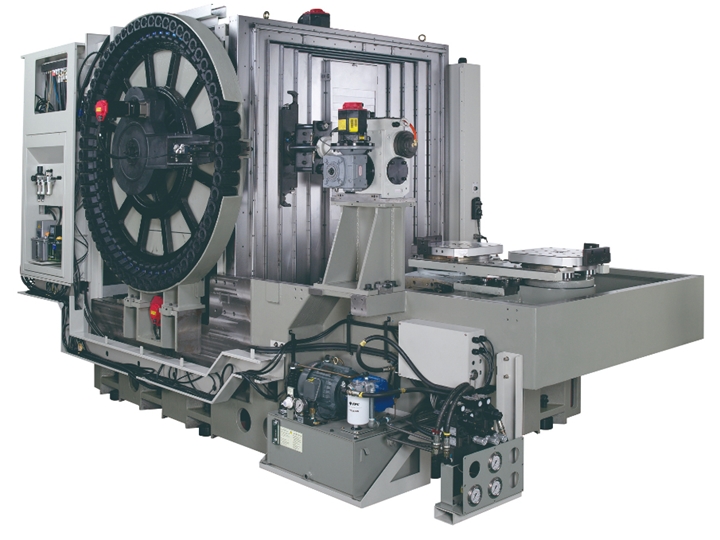

The Victor Vcenter H400 is a CNC horizontal machining center designed for applications requiring high productivity and precision machining. Thanks to its robust machine structure and balanced horizontal configuration, it provides excellent stability, consistent surface quality, and reduced operator workload, especially in the machining of large-volume workpieces. The H400 is an ideal solution for manufacturers aiming for maximum efficiency and durability in heavy-duty mass production environments.

Key Features

  • Increased Productivity with Horizontal Machining
    The machine body and table design facilitate efficient chip evacuation, reducing downtime and interruptions.
  • Strong and Stable Machine Structure
    Delivers high rigidity and vibration-free performance even under heavy cutting conditions.
  • Large Workpiece Machining Capacity
    Wide axis travels enable effective and controlled machining of large parts.
  • User-Friendly Operation
    Simplifies operation and improves operator efficiency, accelerating production workflows.
  • High Productivity & Durability
    Designed for continuity and reliability, offering superior performance in demanding production environments.

TECHNICAL SPECIFICATIONS

Items Unit H400 (Non CTS) H400 (CTS)
Travel
X axis mm 500 500
Y axis mm 600 600
Z axis mm 500 500
B axis deg 0 ~ 360 0 ~ 360
Table
Work area mm 400 × 400 400 × 400
Surface configuration mm M12 × P1.75 M12 × P1.75
Max load kg 400 400
Pallet exchange time sec 7 (P-P), 11.4 (C-C) 7 (P-P), 11.4 (C-C)
Spindle
Quill taper   BBT-40 BBT-40
Motor power kW 44 / 6 / 9 44 / 6 / 9
Max speed rpm 15000 15000
Tools
Capacity T 60 60
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 11300 11300
