Victor Taichung Vcenter-G165

TECHNICAL SPECIFICATIONS

Items Unit G165 (Non CTS) G165 (CTS)
Travel
X axis mm 1650 1650
Y axis mm 850 850
Z axis mm 900 900
Table
Work area mm 1700 × 800 1700 × 800
T-slot mm 5 × 22 × 150 5 × 22 × 150
Max load kg 2500 2500
Spindle
Quill taper   BBT-50 BBT-50
Motor power kW 15 / 18 15 / 18
Max speed rpm 6000 6000
Tools
Capacity T 24 24
Max weight kg 15 15
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 16500 16500

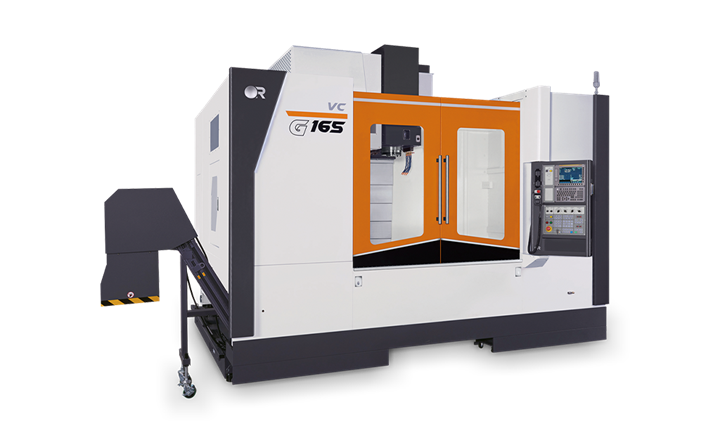

Victor Taichung Vcenter-G165

The Victor Vcenter G165 is a high-stability CNC machining center developed for heavy cutting operations and continuous production environments. Thanks to its box-way guideway structure, it minimizes vibration during demanding machining applications while maintaining part quality and dimensional consistency. The G165 is a powerful solution for manufacturers seeking reliable, long-term production of large and heavy workpieces.

Key Features

  • Superior Stability with Box-Way Structure
    Provides high rigidity and reliable machining performance in heavy cutting applications.
  • Ideal for Large and Heavy Workpieces
    Ensures balanced and controlled operation even under demanding production conditions.
  • Production-Oriented Design for Continuous Operation
    Maintains part quality and machining consistency during extended production cycles.
  • Robust and Durable Construction
    Long-lasting machine design suitable for intensive industrial environments.
  • Strong Price / Performance Balance
    Optimizes investment costs while delivering powerful heavy-machining capability.

TECHNICAL SPECIFICATIONS

Items Unit G165 (Non CTS) G165 (CTS)
Travel
X axis mm 1650 1650
Y axis mm 850 850
Z axis mm 900 900
Table
Work area mm 1700 × 800 1700 × 800
T-slot mm 5 × 22 × 150 5 × 22 × 150
Max load kg 2500 2500
Spindle
Quill taper   BBT-50 BBT-50
Motor power kW 15 / 18 15 / 18
Max speed rpm 6000 6000
Tools
Capacity T 24 24
Max weight kg 15 15
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 16500 16500
