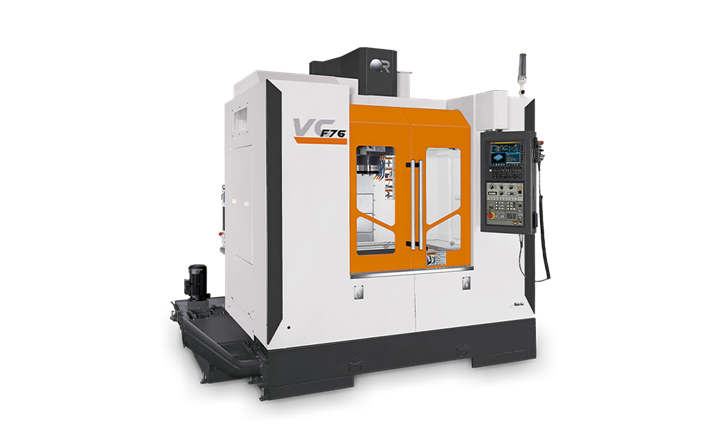

Victor Taichung Vcenter-F76

Get a Quote
Catalog

TECHNICAL SPECIFICATIONS

Items Unit F76 (Non CTS) F76 (CTS)
Travel
X axis mm 760 760
Y axis mm 500 500
Z axis mm 510 510
Table
Work area mm 840 × 500 840 × 500
T-slot mm 4 × 18 × 100 4 × 18 × 100
Max load kg 500 500
Spindle
Quill taper   BT-40 BT-40
Motor power kW 42 / 30 / 9 42 / 30 / 9
Max speed rpm 8000 8000
Tools
Capacity T 24 24
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 5260 5260

Victor Taichung Vcenter-F76

The Victor Vcenter F76 is a CNC vertical machining center designed to deliver high productivity and reliability for daily manufacturing needs. With its balanced machine structure, stable operating characteristics, and user-friendly design, it provides an effective solution for both mass production and flexible manufacturing environments where different types of parts are processed. The F76 is an ideal choice for manufacturers seeking continuity, quality, and operational efficiency in their production processes.

Key Features

  • High-Productivity-Oriented Design
    Engineered to accelerate production processes and reduce downtime.
  • Stable and Reliable Operation
    Ensures consistent and balanced machining performance even during long production cycles.
  • User-Friendly Operation
    Easy programming and practical operation enhance operator efficiency.
  • Wide Range of Applications
    Suitable for general manufacturing, mass production, and precision part machining applications.
  • Strong Price / Performance Balance
    Delivers high production quality while optimizing investment costs.

TECHNICAL SPECIFICATIONS

Items Unit F76 (Non CTS) F76 (CTS)
Travel
X axis mm 760 760
Y axis mm 500 500
Z axis mm 510 510
Table
Work area mm 840 × 500 840 × 500
T-slot mm 4 × 18 × 100 4 × 18 × 100
Max load kg 500 500
Spindle
Quill taper   BT-40 BT-40
Motor power kW 42 / 30 / 9 42 / 30 / 9
Max speed rpm 8000 8000
Tools
Capacity T 24 24
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 5260 5260
