Victor Taichung Vcenter-AX800

Get a Quote
Catalog

TECHNICAL SPECIFICATIONS

Items Unit Non CTS CTS
Travel
X axis mm 1600 1600
Y axis mm 700 700
Z axis mm 600 (V), 1000 (H) 600 (V), 1000 (H)
B axis deg -30 ~ 110 -30 ~ 110
C axis deg 0 ~ 360 0 ~ 360
Table

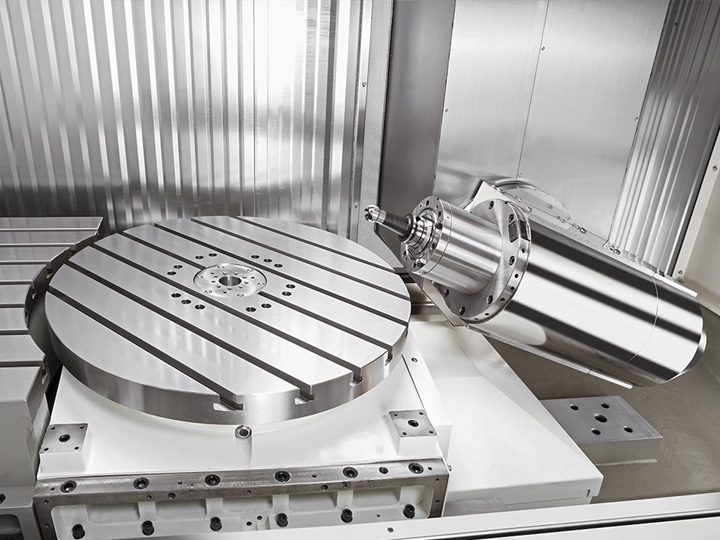

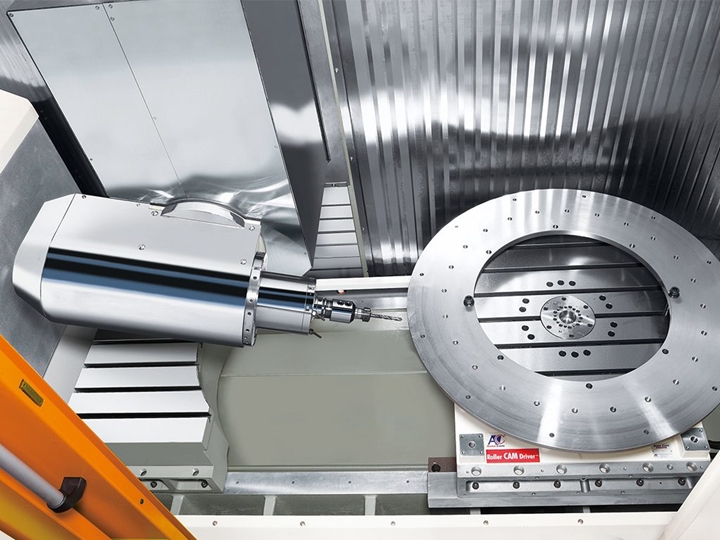

Work area mm Ø800 × 1250 Ø800 × 1250
T-slot mm 7 × 18H7 × 100 7 × 18H7 × 100
Max load kg 1200 1200
Spindle
Quill taper   BBT-40 BBT-40
Motor power kW 15 / 18.5 / 22 15 / 18.5 / 22
Max speed rpm 15000 15000
Tools
Capacity T 40 40
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 15500 15500

Victor Taichung Vcenter-AX800

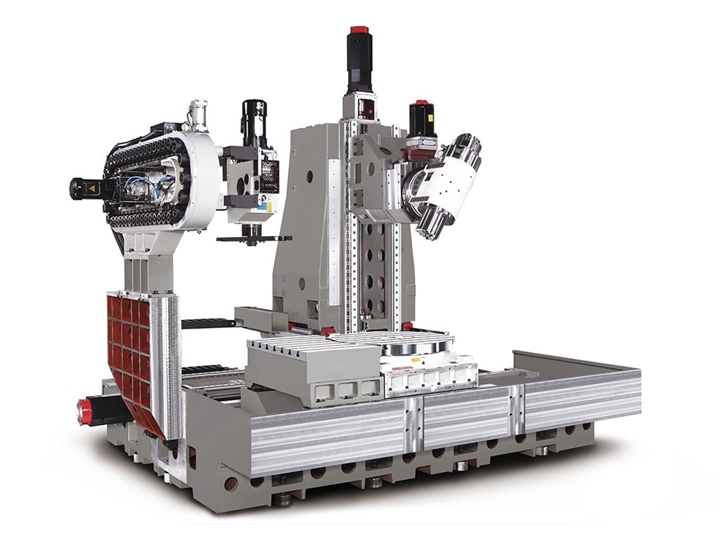

The Victor Taichung AX800 is an advanced 5-axis CNC machining center developed for large workpieces and complex geometries. With its 5-axis capability, it enables fast and precise machining of three-dimensional forms and challenging parts in a single setup. Its high stability and rigid structural design ensure consistent quality and efficiency throughout production processes.

The AX800 delivers reliable performance in aerospace, automotive, mold & die, and heavy industry applications, especially for the production of large-volume and tight-tolerance components.

Key Features

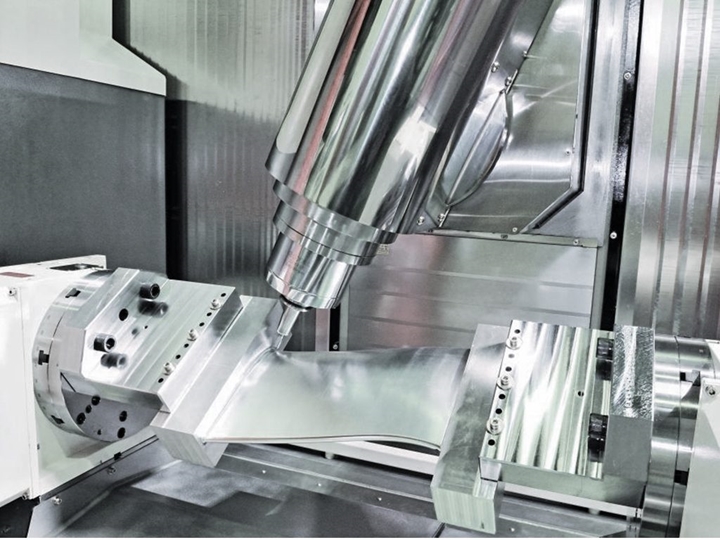

  • 5-axis machining capability enables one-step production of complex and three-dimensional parts
  • Large machining area allows processing of oversized workpieces

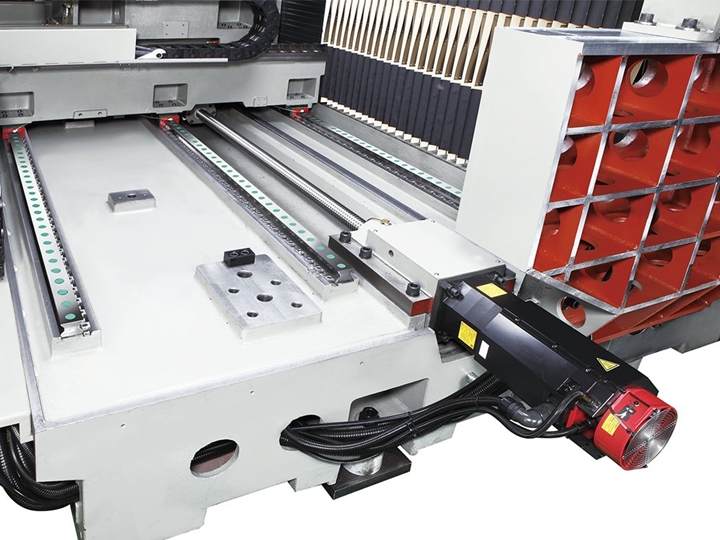

  • Rigid and robust construction supports stable and quiet operation even under heavy loads
  • High precision improves surface quality and dimensional repeatability
  • Multi-directional machining in a single setup reduces setup time and rework requirements
  • User-friendly CNC control unit enhances operator productivity
  • Victor Taichung engineering provides long-lasting performance with low service and maintenance requirements

TECHNICAL SPECIFICATIONS

Items Unit Non CTS CTS
Travel
X axis mm 1600 1600
Y axis mm 700 700
Z axis mm 600 (V), 1000 (H) 600 (V), 1000 (H)
B axis deg -30 ~ 110 -30 ~ 110
C axis deg 0 ~ 360 0 ~ 360
Table
Work area mm Ø800 × 1250 Ø800 × 1250
T-slot mm 7 × 18H7 × 100 7 × 18H7 × 100
Max load kg 1200 1200
Spindle
Quill taper   BBT-40 BBT-40
Motor power kW 15 / 18.5 / 22 15 / 18.5 / 22
Max speed rpm 15000 15000
Tools
Capacity T 40 40
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 15500 15500
