Victor Taichung Vcenter-AX630

Get a Quote
Catalog

TECHNICAL SPECIFICATIONS

Items Unit AX630 (Non CTS) AX630 (CTS)
Travel
X axis mm 700 700
Y axis mm 500 500
Z axis mm 500 500
B axis deg -30 ~ 110 -30 ~ 110
C axis deg 0 ~ 360 0 ~ 360

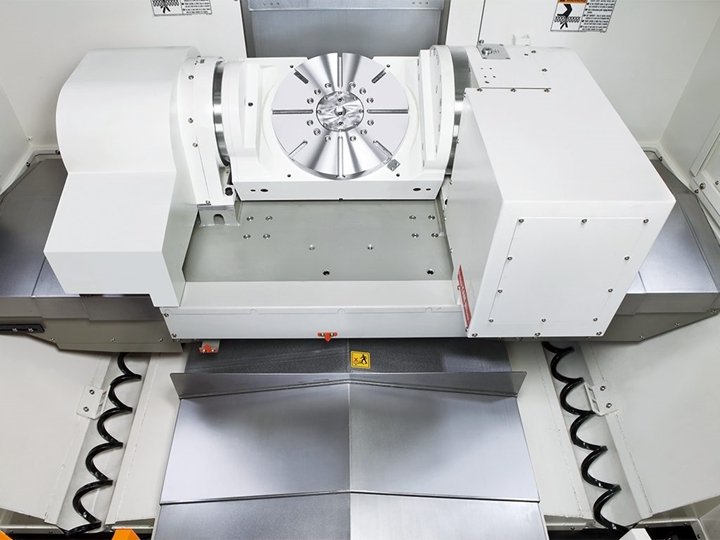

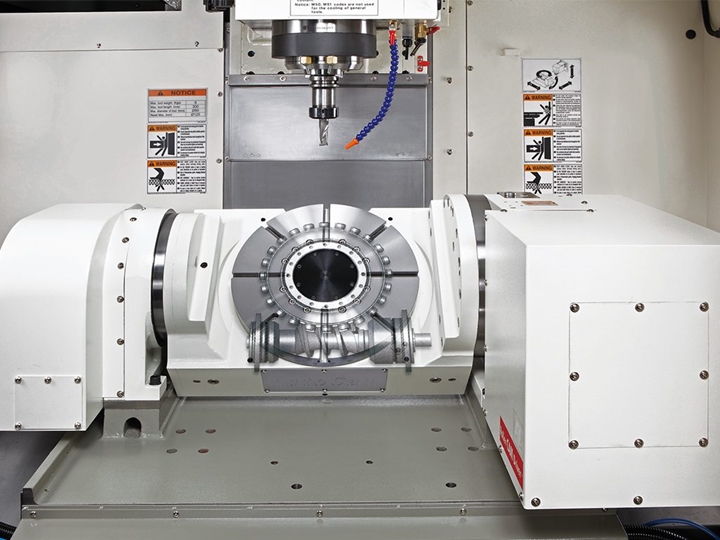

Table
Work area mm Ø630 × 500 Ø630 × 500
T-slot mm 5 × 18H7 × 100 5 × 18H7 × 100
Max load kg 300 300
Spindle
Quill taper   BBT-40 BBT-40
Motor power kW 11 / 15 / 18.5 7.5 / 11 / 15
Max speed rpm 12000 12000
Tools
Capacity T 30 30
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 9000 9000

Victor Taichung Vcenter-AX630

The Victor Taichung AX380 is a high-performance 5-axis CNC machining center designed to meet modern manufacturing demands. With its large machining capacity and flexible axis configuration, it enables precise and efficient machining of complex geometries.

Featuring a user-friendly control system, strong structural stability, and high precision, the AX380 provides a powerful solution for automotive, aerospace, mold & die, and advanced engineering component manufacturing. By reducing the number of setups and machining times, this machine improves efficiency throughout production processes.

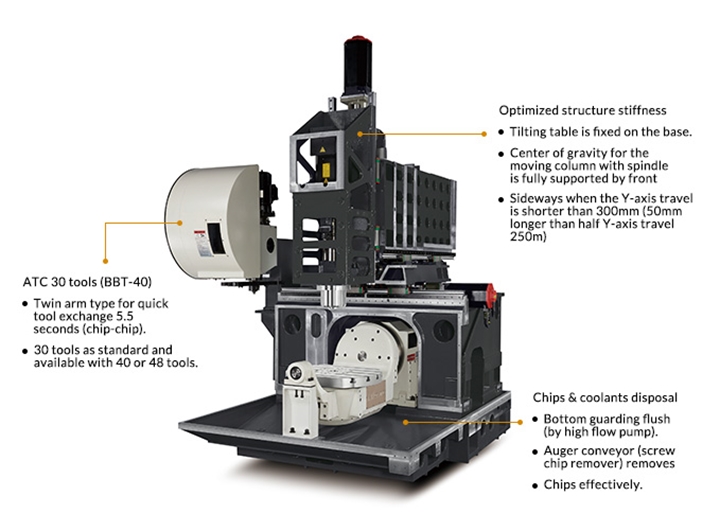

Key Features

  • 5-axis machining capability allows complex-shaped parts to be machined in a single setup
  • Large machining capacity and rigid machine structure ensure stable processing of large workpieces
  • High-precision axis control optimizes surface quality and dimensional repeatability
  • Higher productivity with fewer setups reduces overall production time
  • User-friendly CNC control enhances operator efficiency

Victor Taichung engineering delivers long-lasting, durable performance with low maintenance

TECHNICAL SPECIFICATIONS

Items Unit AX630 (Non CTS) AX630 (CTS)
Travel
X axis mm 700 700
Y axis mm 500 500
Z axis mm 500 500
B axis deg -30 ~ 110 -30 ~ 110
C axis deg 0 ~ 360 0 ~ 360
Table
Work area mm Ø630 × 500 Ø630 × 500
T-slot mm 5 × 18H7 × 100 5 × 18H7 × 100
Max load kg 300 300
Spindle
Quill taper   BBT-40 BBT-40
Motor power kW 11 / 15 / 18.5 7.5 / 11 / 15
Max speed rpm 12000 12000
Tools
Capacity T 30 30
Max weight kg 7 7
Accuracy (ISO 230-2)
Accuracy mm 0.01 0.01
Repeatability mm 0.007 (±0.0035) 0.007 (±0.0035)
Machine
Weight kg 9000 9000
