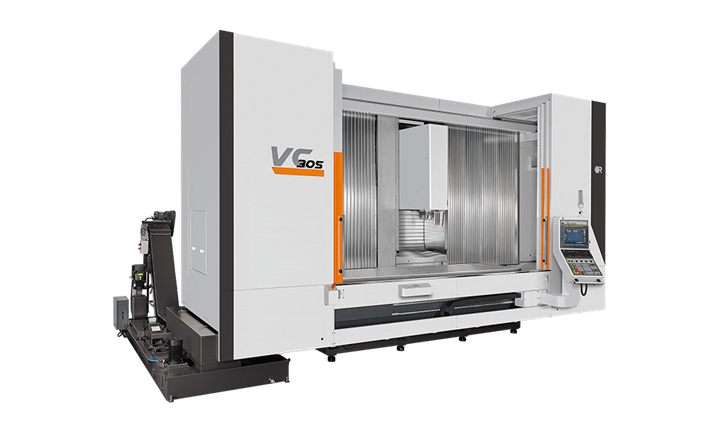

Victor Taichung Vcenter-305

TECHNICAL SPECIFICATIONS

Items Unit 305
Travel
X axis mm 3050
Y axis mm 760
Z axis mm 700
Table
Work area mm 3510 × 770
T-slot mm 7 × 18 × 100
Max load kg 3000
Spindle
Quill taper   BBT-40
Motor power kW 7.5 / 11 / 15
Max speed rpm 12000
Tools
Capacity T 24
Max weight kg 8
Accuracy (ISO 230-2)
Accuracy mm 0.015
Repeatability mm 0.007 (±0.0035)
Machine
Weight kg 21500

Victor Taichung Vcenter-305

The Victor Vcenter 305 is a traveling column CNC machining center designed for applications requiring high rigidity and productivity. Thanks to its wide axis travels and robust machine structure, it enables effective and controlled machining of large workpieces. The Vcenter 305 is an ideal solution for manufacturers in heavy industry, mold & die, and large-scale production environments seeking high stability, consistent surface quality, and continuous production performance.

Key Features

  • Enhanced Stability with Traveling Column Design
    The traveling column structure minimizes vibration and provides high rigidity even during heavy cutting operations.
  • Large Workpiece Capacity
    Supports efficient and controlled machining of large workpieces.
  • Robust and Durable Machine Structure
    The balanced machine design delivers stable performance even under demanding production conditions.
  • User-Friendly Operation
    Practical CNC control and an intuitive operator interface improve production efficiency and ease of use.
  • Consistent Production Performance
    Ensures reliable machining results and superior surface quality in continuous production processes.

TECHNICAL SPECIFICATIONS

Items Unit 305
Travel
X axis mm 3050
Y axis mm 760
Z axis mm 700
Table
Work area mm 3510 × 770
T-slot mm 7 × 18 × 100
Max load kg 3000
Spindle
Quill taper   BBT-40
Motor power kW 7.5 / 11 / 15
Max speed rpm 12000
Tools
Capacity T 24
Max weight kg 8
Accuracy (ISO 230-2)
Accuracy mm 0.015
Repeatability mm 0.007 (±0.0035)
Machine
Weight kg 21500
