ONA AV80

Get a Quote
Catalog

TECHNICAL SPECIFICATIONS

Specification Metric Imperial
X-axis travel 800 mm 31.5 in
Y-axis travel 600 mm 23.6 in
Z-axis travel 500 / 600 / 700 / 800 mm 19.7 / 23.6 / 27.5 / 31.5 in
Maximum workpiece dimensions - Length 1300 mm 51.2 in
Maximum workpiece dimensions - Width 1040 mm 40.9 in
Maximum workpiece dimensions - Height 500 mm 19.7 in
Allowable weight on table 5000 kg 11000 lbs
U/V-axes travel 500 × 500 mm 19.7 × 19.7 in
Maximum angle of conical cut (optionally ±45°) ±30° / 400 mm ±30° / 15.8 in
Wire diameter range 0.20 / 0.33 mm 0.008 – 0.013 in
Maximum cutting speed 450 mm²/min – Ø0.33 mm (Xcc wire) 42 in²/hr – Ø0.013 in (Xcc wire)

ONA AV80

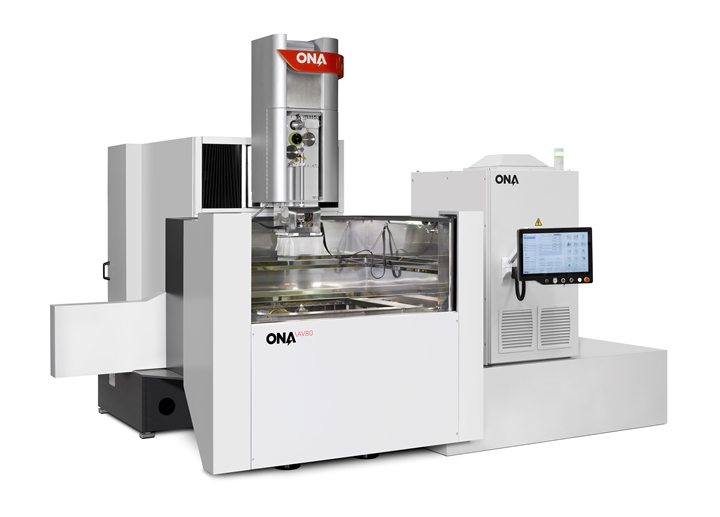

The ONA AV80 is an industrial-grade modular CNC Wire-EDM machine designed for high-precision machining of large and heavy workpieces. With its high-capacity structure, flexible configuration options, and robust machine design, it provides an ideal solution for mold manufacturing, aerospace, automotive, and heavy industrial applications.

Its modular architecture allows the AV80 to be adapted to various production requirements, while delivering excellent surface quality, powerful cutting performance, and optimized production efficiency. The 23” touchscreen CNC control, advanced generator technology, and 3D workpiece visualization create a highly user-friendly machining experience.

Key Features

  • 23” touchscreen CNC control system with intuitive menus and real-time process monitoring
  • Optimized workflow management through integrated JOB list tracking
  • Advanced 3D workpiece visualization enabling touch-based positioning and rotation control
  • Next-generation generator technology delivering high cutting speeds and up to 30% energy savings
  • Cutting speed up to 450 mm²/min (Ø0.33 wire – XCC) for maximum machining productivity
  • ONA Script programming and in-process measurement options for complete workpiece positioning control
  • Modular high-capacity structure ideal for large-scale and heavy-duty Wire-EDM applications

TECHNICAL SPECIFICATIONS

Specification Metric Imperial
X-axis travel 800 mm 31.5 in
Y-axis travel 600 mm 23.6 in
Z-axis travel 500 / 600 / 700 / 800 mm 19.7 / 23.6 / 27.5 / 31.5 in
Maximum workpiece dimensions - Length 1300 mm 51.2 in
Maximum workpiece dimensions - Width 1040 mm 40.9 in
Maximum workpiece dimensions - Height 500 mm 19.7 in
Allowable weight on table 5000 kg 11000 lbs
U/V-axes travel 500 × 500 mm 19.7 × 19.7 in
Maximum angle of conical cut (optionally ±45°) ±30° / 400 mm ±30° / 15.8 in
Wire diameter range 0.20 / 0.33 mm 0.008 – 0.013 in
Maximum cutting speed 450 mm²/min – Ø0.33 mm (Xcc wire) 42 in²/hr – Ø0.013 in (Xcc wire)
