ONA AV60

Get a Quote
Catalog

TECHNICAL SPECIFICATIONS

Specification Metric Imperial
X-axis travel 800 mm 31.5 in
Y-axis travel 600 mm 23.6 in
Z-axis travel 500 / 600 / 700 / 800 mm 19.7 / 23.6 / 27.5 / 31.5 in
Maximum workpiece dimensions - Length 1300 mm 51.2 in
Maximum workpiece dimensions - Width 1040 mm 40.9 in
Maximum workpiece dimensions - Height 500 mm 19.7 in
Allowable weight on table 5000 kg 11000 lbs
U/V-axes travel 500 × 500 mm 19.7 × 19.7 in
Maximum angle of conical cut (optionally ±45°) ±30° / 400 mm ±30° / 15.8 in
Wire diameter range 0.20 / 0.33 mm 0.008 – 0.013 in
Maximum cutting speed 450 mm²/min – Ø0.33 mm (Xcc wire) 42 in²/hr – Ø0.013 in (Xcc wire)

ONA AV60

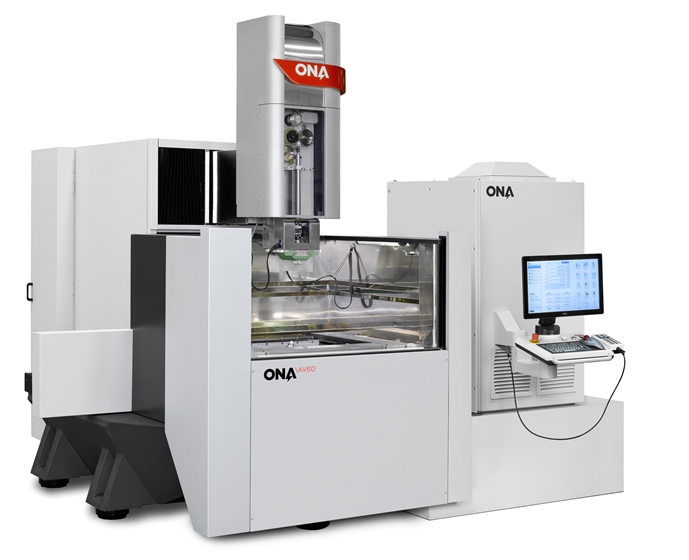

The ONA AV60 is a modular industrial CNC Wire-EDM machine designed for high-precision machining of large and heavy workpieces. Thanks to its flexible modular structure, it can be customized according to production requirements while maintaining high performance even in demanding industrial environments.

With its large workpiece capacity and robust mechanical construction, the AV60 is an ideal solution for mold manufacturing, aerospace, automotive, and large-scale component production.

Its modular design allows expanded machining areas and multiple Z-axis height configurations, while the user-friendly 23” touchscreen CNC control system simplifies process management. Advanced generator technology and 3D workpiece visualization ensure high cutting efficiency and reliable machining accuracy.

Key Features

  • 23” touchscreen CNC control system with intuitive menus and real-time process monitoring
  • Optimized workflow management through integrated JOB list tracking
  • Advanced 3D workpiece visualization with touch-based positioning and rotation control
  • Next-generation generator technology delivering high cutting performance and up to 30% energy savings
  • Cutting speed up to 450 mm²/min (Ø0.33 wire – XCC) for increased productivity
  • ONA Script programming and in-process measurement options for complete workpiece positioning control
  • Modular machine design allowing flexible configuration for large and heavy workpieces

TECHNICAL SPECIFICATIONS

Specification Metric Imperial
X-axis travel 800 mm 31.5 in
Y-axis travel 600 mm 23.6 in
Z-axis travel 500 / 600 / 700 / 800 mm 19.7 / 23.6 / 27.5 / 31.5 in
Maximum workpiece dimensions - Length 1300 mm 51.2 in
Maximum workpiece dimensions - Width 1040 mm 40.9 in
Maximum workpiece dimensions - Height 500 mm 19.7 in
Allowable weight on table 5000 kg 11000 lbs
U/V-axes travel 500 × 500 mm 19.7 × 19.7 in
Maximum angle of conical cut (optionally ±45°) ±30° / 400 mm ±30° / 15.8 in
Wire diameter range 0.20 / 0.33 mm 0.008 – 0.013 in
Maximum cutting speed 450 mm²/min – Ø0.33 mm (Xcc wire) 42 in²/hr – Ø0.013 in (Xcc wire)
