ONA AV35

Get a Quote
Catalog

TECHNICAL SPECIFICATIONS

Specification Metric Imperial
X-axis travel 600 mm 23.6 in
Y-axis travel 400 mm 15.7 in
Z-axis travel 400 mm 15.7 in
Worktank internal dimension - Length 1,060 mm 18.5 in
Worktank internal dimension - Width 750 mm 18.5 in
Worktank internal dimension - Height 400 mm 18.5 in
U-V axes travel 120 mm × 120 mm 4.7 × 4.7 in
Maximum angle of conical cut (optionally ±45°) ±30° / 87 mm ±30° / 3.4 in
Wire diameter range 0.07 mm – 0.33 mm 0.003 – 0.013 in
Maximum cutting speed 450 mm²/min – Ø0.33 mm (Xcc wire) 42 in²/hr – Ø0.013 in (Xcc wire)
Minimum roughness 0.1 µm Ra 0.1 µm Ra

ONA AV35

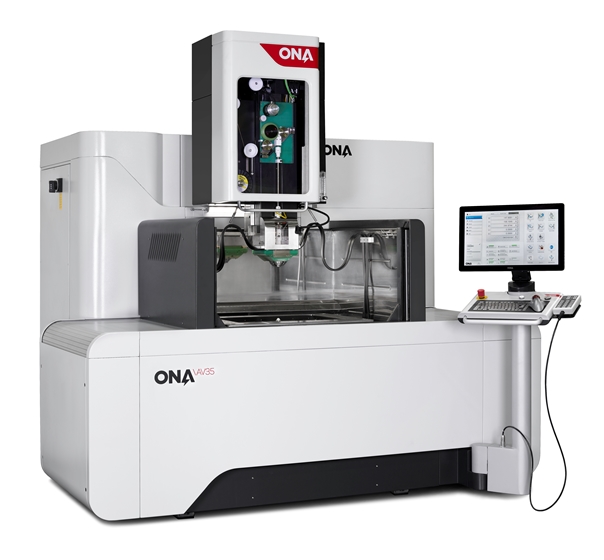

The ONA AV35 is an industrial-grade CNC Wire-EDM machine developed for high-precision machining of large and heavy workpieces. With its large workpiece capacity, rigid machine structure, and stable cutting performance, it delivers outstanding results especially in mold manufacturing, mass production, and heavy-duty machining applications.

The robust AV Series machine design maintains dimensional accuracy even during long and continuous production cycles, minimizing vibration and deformation on large components. Advanced AV technology ensures both superior surface quality and repeatable machining precision.

Its Windows-style CNC control interface simplifies operation for users, while automation compatibility improves production efficiency. Low maintenance requirements and energy-efficient operation help optimize total ownership costs.

Key Features

  • 21” touchscreen CNC control system with intuitive menus, icon-based applications, and real-time process monitoring
  • Optimized workflow management allowing operators to monitor all jobs from a single screen
  • Advanced 3D workpiece visualization with touchscreen-based positioning and rotation control
  • Next-generation generator technology enabling high cutting speeds and up to 30% energy savings
  • Cutting speed up to 450 mm²/min (0.33 wire – XCC) for high-productivity machining
  • ONA Script programming and in-process measurement options for full positioning and process control
  • High-rigidity machine structure ensuring stable and accurate machining of large workpieces

TECHNICAL SPECIFICATIONS

Specification Metric Imperial
X-axis travel 600 mm 23.6 in
Y-axis travel 400 mm 15.7 in
Z-axis travel 400 mm 15.7 in
Worktank internal dimension - Length 1,060 mm 18.5 in
Worktank internal dimension - Width 750 mm 18.5 in
Worktank internal dimension - Height 400 mm 18.5 in
U-V axes travel 120 mm × 120 mm 4.7 × 4.7 in
Maximum angle of conical cut (optionally ±45°) ±30° / 87 mm ±30° / 3.4 in
Wire diameter range 0.07 mm – 0.33 mm 0.003 – 0.013 in
Maximum cutting speed 450 mm²/min – Ø0.33 mm (Xcc wire) 42 in²/hr – Ø0.013 in (Xcc wire)
Minimum roughness 0.1 µm Ra 0.1 µm Ra
