ONA AD25

TECHNICAL SPECIFICATIONS

Specification	Metric	Imperial

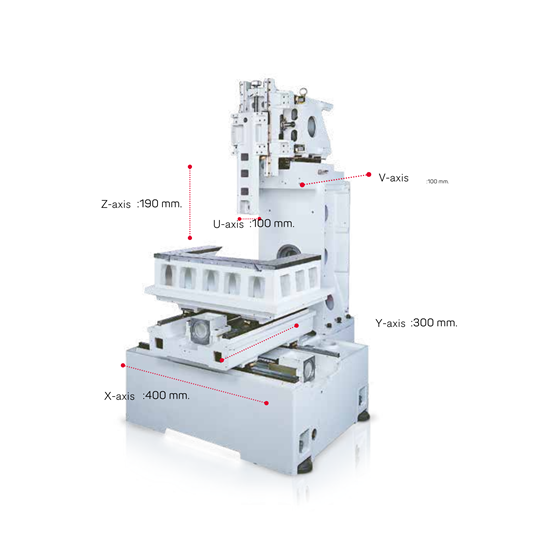

X-axis travel	400 mm	15.748 in
Y-axis travel	300 mm	11.811 in
Z-axis travel	190 mm	7.480 in
Maximum workpiece dimensions - Length	790 mm	31.102 in
Maximum workpiece dimensions - Width	560 mm	22.047 in
Maximum workpiece dimensions - Height	190 mm	7.480 in
U-V axes travel	100 mm × 100 mm	3.937 × 3.937 in
Max. Taper	±21° / 100 mm	±30° / 3.937 in
Wire size range	0.2 mm – 0.25 mm – 0.3 mm	0.078 in – 0.0984 in – 0.118 in
Max. Axes speed	800 mm/min	31.49 in/min
Best Roughness	0.4 Ra	0.4 µm Ra

ONA AD25

The ONA AD25 is a compact and high-performance CNC Wire-EDM machine developed for high-precision wire cutting applications. With its space-saving design, Advanced AD technology, low energy consumption, and repeatable machining accuracy, it provides a reliable solution for mold manufacturing, precision part production, and serial production environments.

Its modern Windows-style CNC control system, user-friendly interface, and automation capabilities help accelerate production processes, reduce operator errors, and improve overall productivity.

Key Features

Advanced precision cutting technology ensuring reliable and accurate Wire-EDM performance
Windows-style graphical interface providing user-friendly operation and automation support
Laser-tested according to VDI 3441 and ISO 230-4 standards for positioning and circular accuracy
Repeatable machining precision across different machines using identical cutting data
Low maintenance cost and low energy consumption for efficient long-term operation
Standard collision protection system enhancing operational safety and machine protection

TECHNICAL SPECIFICATIONS

Specification	Metric	Imperial
X-axis travel	400 mm	15.748 in
Y-axis travel	300 mm	11.811 in
Z-axis travel	190 mm	7.480 in
Maximum workpiece dimensions - Length	790 mm	31.102 in
Maximum workpiece dimensions - Width	560 mm	22.047 in
Maximum workpiece dimensions - Height	190 mm	7.480 in
U-V axes travel	100 mm × 100 mm	3.937 × 3.937 in
Max. Taper	±21° / 100 mm	±30° / 3.937 in
Wire size range	0.2 mm – 0.25 mm – 0.3 mm	0.078 in – 0.0984 in – 0.118 in
Max. Axes speed	800 mm/min	31.49 in/min
Best Roughness	0.4 Ra	0.4 µm Ra
