TECHNICAL SPECIFICATIONS

Items	Φ 65mm	Φ 71mm	Φ 80mm (op.)	Φ 102mm (op.)
Max. Turning Diameter (Upper)	270mm		199mm
Max. Turning Diameter (Lower)	270mm			270mm (L: Φ102 / R: Φ65) 229mm (L: Φ102 / R: Φ102)
Max. Turning Length	780mm
Distance Between Spindles	max. 1,100mm / min. 250mm
L Bar Capacity	Φ 65mm	Φ 71mm	Φ 80mm	Φ 102mm
R Bar Capacity	Φ 65mm	-	-	Φ 102mm
Chuck Size	8”		(10” *1), 12”
L Spindle Speed	4,500 min^-1	4,000 min^-1	3,500 min^-1	2,500 min^-1
L Spindle Drive Motor	15/11kW, 18.5/15kW (op.), 22/18.5kW (op.)
R Spindle Speed	4,500 min^-1	-	-	2,500 min^-1
R Spindle Drive Motor	15/11kW, 18.5/15kW (op.)	-	-	15/11kW, 18.5/15kW (op.)
Floor space	height: 2,276mm
	width: 4,230mm	width: 4,275mm		width: 4,345mm
	depth: 2,487mm

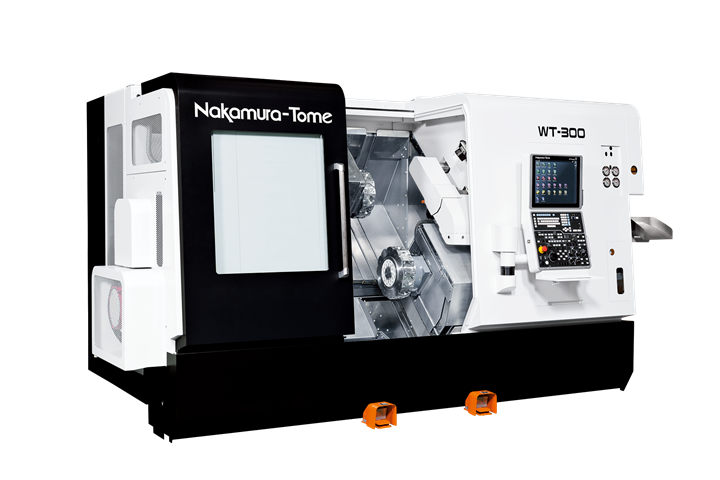

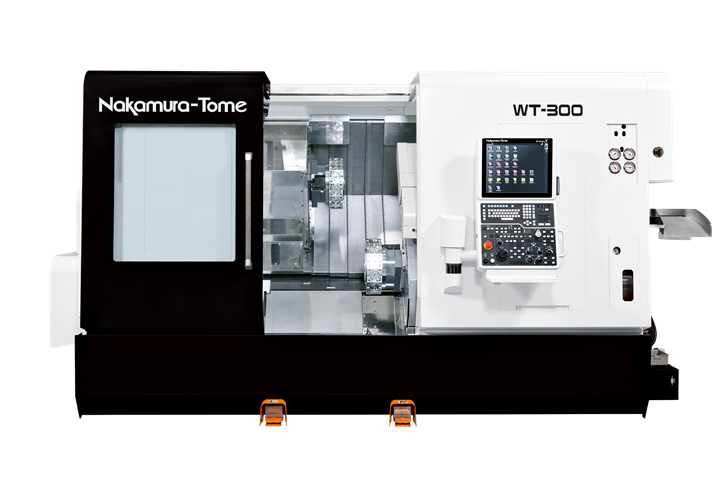

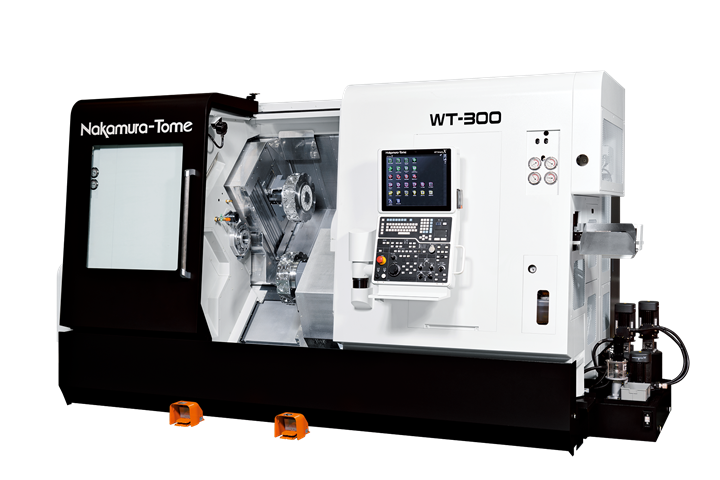

Nakamura Tome WT-300

The WT-300 is a box-way multitasking CNC turning center designed for high-rigidity machining environments. With its twin-turret structure, heavy-duty cutting capability, and powerful spindle motors, it significantly reduces cycle times, improves part quality, and completes complex workpieces in a single setup.

Its durable industrial structure and long-lasting mechanical design make the WT-300 an ideal solution for automotive, defense, hydraulics, and heavy industry manufacturers.

Key Features

Box-way guideways on all axes for maximum rigidity and stable heavy-duty cutting
Twin-turret simultaneous machining for dramatically shorter cycle times
High-torque spindles ensuring stable cutting performance on difficult materials
Large machining area ideal for large-diameter workpieces
Turning + milling capability enabling multiple operations on a single machine

TECHNICAL SPECIFICATIONS

Items	Φ 65mm	Φ 71mm	Φ 80mm (op.)	Φ 102mm (op.)
Max. Turning Diameter (Upper)	270mm		199mm
Max. Turning Diameter (Lower)	270mm			270mm (L: Φ102 / R: Φ65) 229mm (L: Φ102 / R: Φ102)
Max. Turning Length	780mm
Distance Between Spindles	max. 1,100mm / min. 250mm
L Bar Capacity	Φ 65mm	Φ 71mm	Φ 80mm	Φ 102mm
R Bar Capacity	Φ 65mm	-	-	Φ 102mm
Chuck Size	8”		(10” *1), 12”
L Spindle Speed	4,500 min^-1	4,000 min^-1	3,500 min^-1	2,500 min^-1
L Spindle Drive Motor	15/11kW, 18.5/15kW (op.), 22/18.5kW (op.)
R Spindle Speed	4,500 min^-1	-	-	2,500 min^-1
R Spindle Drive Motor	15/11kW, 18.5/15kW (op.)	-	-	15/11kW, 18.5/15kW (op.)
Floor space	height: 2,276mm
	width: 4,230mm	width: 4,275mm		width: 4,345mm
	depth: 2,487mm
