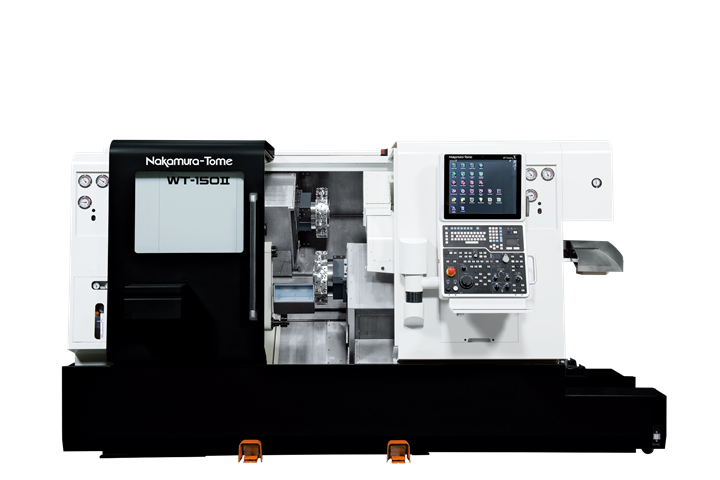

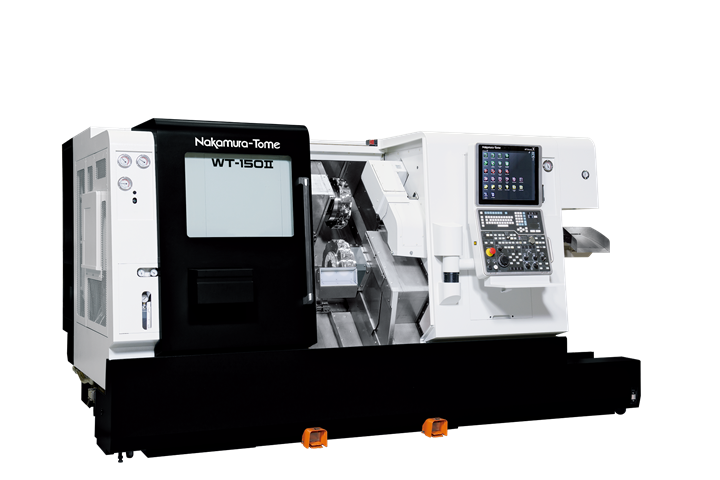

Nakamura Tome WT-150II

TECHNICAL SPECIFICATIONS

Items Φ 51mm Φ 65mm (op.)
Max. Turning Diameter 190mm 190mm
Max. Turning Length 515mm 515mm
Distance Between Spindles max. 800mm / min. 200mm max. 800mm / min. 200mm
Bar Capacity 51mm 65mm (Only L)
Chuck Size 6”, (8” ※1) 6”, (8” ※1)
L/R Spindle Speed 5,000 min-1 4,500 min-1
L Spindle Drive Motor 15/11kW 15/11kW
R Spindle Drive Motor 11/7.5kW -
Floor space height: 1,860.2mm / width: 3,675mm / depth: 2,263.9mm

Nakamura Tome WT-150II

The WT-150II is a compact, high-productivity CNC turning center optimized to reduce cycle times with its twin-turret and twin-spindle architecture. Its parallel machining capability, powerful milling performance, and reduced setup requirements allow multiple operations to be completed on a single machine.

This enables manufacturers to reduce part cycle times, accelerate workflow, and significantly lower overall production costs.

Key Features

  • Optimized structure for reduced cycle times
  • Twin turret + twin spindle configuration for simultaneous machining and faster production
  • Fewer setups, faster operations with multiple processes completed on one machine
  • High-performance milling capability ideal for complex workpieces
  • Compact machine design delivering high capacity in limited space
  • Superior productivity for mass production with time and cost advantages

TECHNICAL SPECIFICATIONS

Items Φ 51mm Φ 65mm (op.)
Max. Turning Diameter 190mm 190mm
Max. Turning Length 515mm 515mm
Distance Between Spindles max. 800mm / min. 200mm max. 800mm / min. 200mm
Bar Capacity 51mm 65mm (Only L)
Chuck Size 6”, (8” ※1) 6”, (8” ※1)
L/R Spindle Speed 5,000 min-1 4,500 min-1
L Spindle Drive Motor 15/11kW 15/11kW
R Spindle Drive Motor 11/7.5kW -
Floor space height: 1,860.2mm / width: 3,675mm / depth: 2,263.9mm
