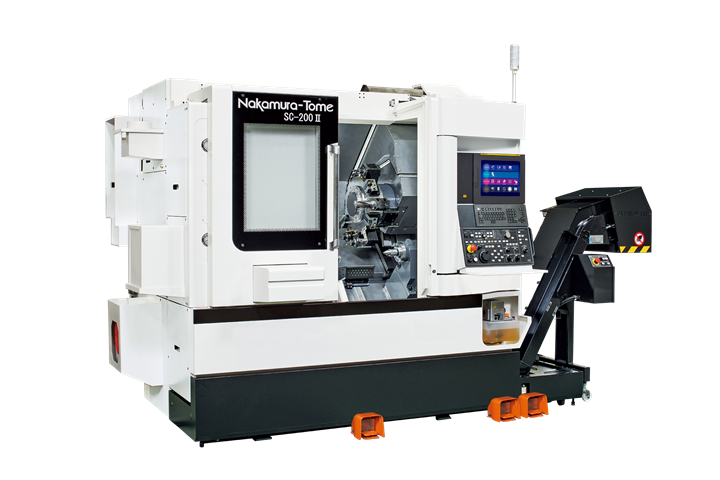

The SC-200II is a high-rigidity CNC turning center designed with a slant-bed structure and box-way guideways, offering a large machining area beyond the standard 8” class. With a maximum turning diameter of 390 mm and a swing diameter of 620 mm, it delivers high precision, rigidity, and productivity for medium- to large-sized workpieces.
Equipped with a powerful spindle motor, standard Y-axis, and high-speed milling capability, the SC-200II is ideal for manufacturers seeking efficient and flexible machining performance in serial production.
Key Features
- Large machining capacity with up to Ø390 mm turning diameter and Ø620 mm swing diameter
- High rigidity and stability thanks to slant-bed design and box-way guideways

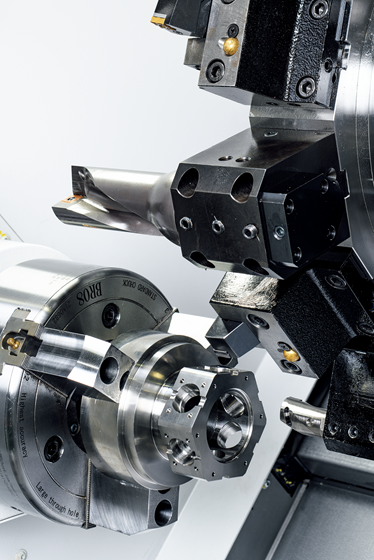

- Powerful spindle and milling performance with up to 4,500 rpm spindle speed and 6,000 rpm milling capability
- Standard Y-axis (±50 mm) for versatile milling and multi-surface machining operations

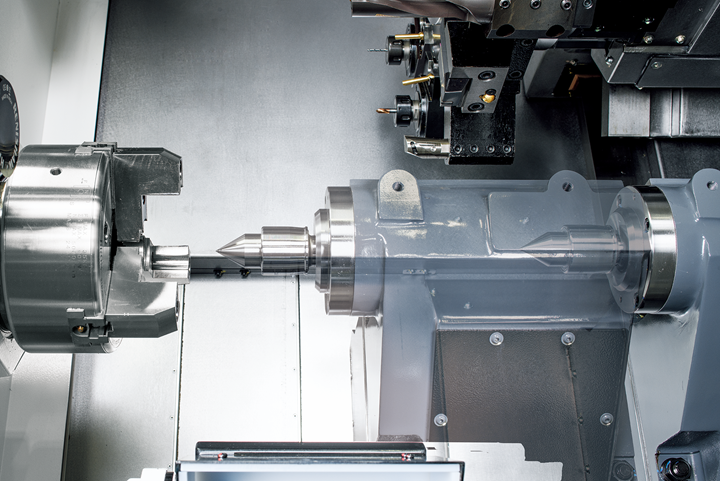

- Automation-ready options including tailstock, gantry loader, and chip conveyor systems
- Flexible machining capability with 8” / 10” chuck options and up to Ø71 mm bar capacity
