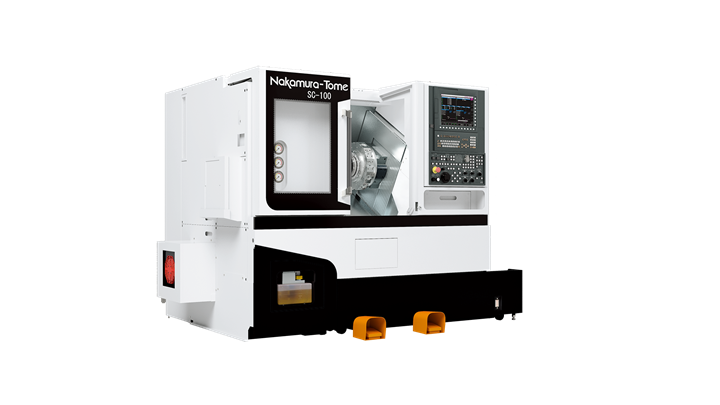

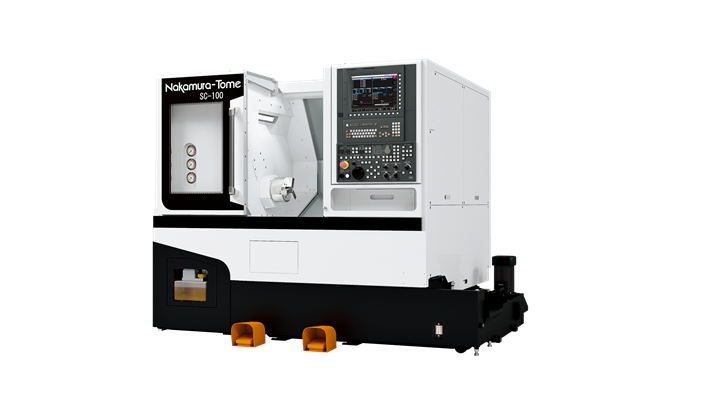

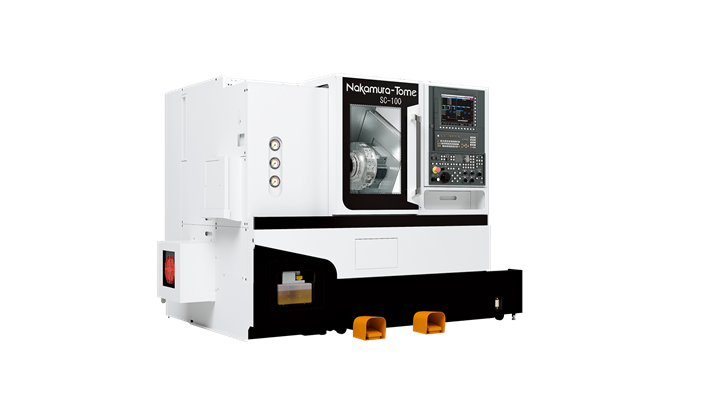

The Nakamura-Tome SC-100 is a single-turret CNC turning center designed to deliver speed, precision, and cost-efficient productivity in the machining of small and medium-sized workpieces. With its compact footprint, high-rigidity machine structure, and standard Y-axis capability, the SC-100 provides versatile multitasking performance in a single machine.
Featuring 400 mm Z-axis travel, a powerful milling motor, and spindle speeds up to 6,000 rpm, the SC-100 shortens cycle times, reduces operator dependency, and improves process consistency in the production of fasteners, precision components, and general mechanical parts.
Key Features
- Compact machine design with high rigidity for stable and precise machining
- 400 mm Z-axis travel for increased machining flexibility
- Standard Parts Catcher A + integrated parts conveyor for efficient automated production
- 100% oil recovery system with environmentally friendly low-consumption design
- Eco-friendly inverter-type hydraulic unit
- Standard Y-axis and milling capability with ±40 mm Y-axis stroke (80 mm total)
- 7.1 / 2.2 kW milling motor and spindle speeds up to 6,000 rpm
- Optional sub-spindle motor (7.5 / 5.5 kW) for enhanced multitasking operations
- Oscillation Cutting technology for improved chip control
- One-Touch Production for simplified programming and faster setup
- NT Nurse system for machine condition monitoring and maintenance guidance
