Superior Machining Capability from Every Angle with a B-Axis Rotary Turret

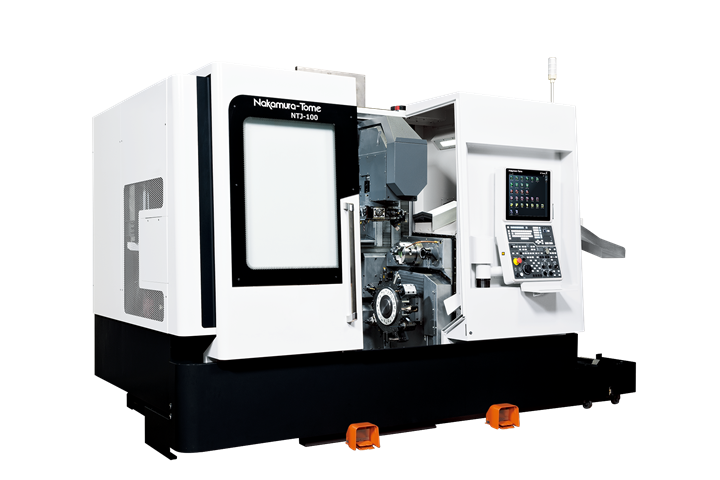

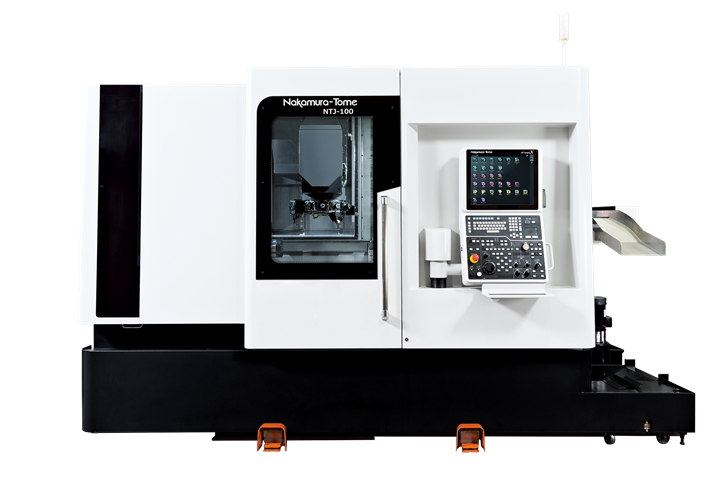

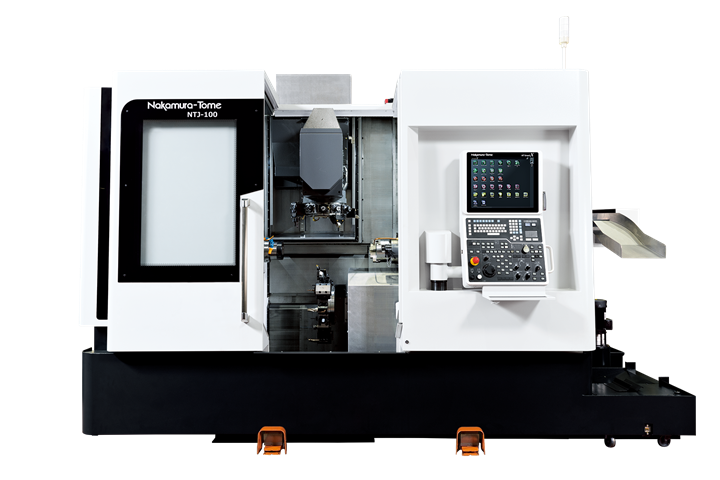

The Nakamura-Tome NTJ-100 is a versatile CNC turning center capable of machining complex parts in a single setup, thanks to its twin opposing spindles and B-axis upper turret configuration. With a 182° swiveling B-axis, standard Y-axis functionality on both turrets, and powerful milling capabilities, multi-surface and angular operations can be completed quickly and accurately. The NTJ-100 is an ideal solution for manufacturers seeking higher productivity through reduced setup times, high tool capacity, and simultaneous machining capabilities.
Key Features
- Twin Spindle + Twin Turret Configuration
The independent operation of the left and right spindles, along with the upper and lower turrets, significantly increases production capacity. Turning and milling operations can be combined within a single machine. - B-Axis Upper Turret (182° Swiveling Head)
Angular drilling, inclined surface milling, and free-form contour machining can be performed using standard tool holders. - Y-Axis and Milling Capability on Both Turrets
Both the upper and lower turrets are equipped with standard Y-axis and milling functions, providing exceptional flexibility for multi-surface and complex contour machining. - High Tool Capacity
Accommodates up to 54 turning tool stations and up to 24 milling/live tool stations, enabling extensive process integration. - Multi-Axis Machining & Maximum Flexibility
The combination of B + Y + Z + C axes and twin-spindle technology allows complex machining operations to be completed in a single setup, including drilling, milling, facing, and contouring. - High Productivity & Reduced Setup Time
Simultaneous machining with twin spindles and turrets, shorter tool change times, and fast cycle times contribute to greater manufacturing efficiency.
